Part 20-4504-7000

Description

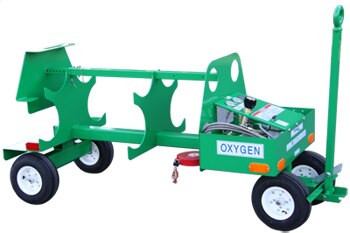

Approvals and Conformities Product Attributes Country of Origin United States Shipping Weight 400 pounds ECCN EAR99 Manufacturer P/N 20-4504-7000 Schedule B Code 8716.80.5070 Pack Quantity 1 The Tronair 20-4504-7000 Cart 4 Ox2 Bottle has no booster. The cart is 80 inches long, 30.5 inches wide, 37 inches high, and weighs 350 lbs. 4 hose manifold to connect bottles with CGA-540 fittings (see accessories) High pressure regulator 15 to 2,500 psi (1 to 172 bar) certified gauge with 15 ft (4.6 m) #4 output hose with 37º JIC female swivel connector 30:1 volumetric displacement 20:1 maximum compression ratio Oxygen overpressure relief valve set at 2,700 psi (186 bar) Operating instructions located on instrument panel In-line 15 micron nominal filter Sturdy welded steel construction Holds four, 9 in (23 cm) diameter oxygen bottles (bottles not included) 13 in (33 cm) diameter 85 psi (5.9 bar) pneumatic tires Front wheels lock with towbar in upright position Removable back stop adjusts to fit bottle lengths from 48 to 64 in (122 to 163 cm) to hold bottles securely in place Towbar with 23/16 in (5.6 cm) ID eyebolt Maximum towing speed 10 mph (16 km/hr) Hose storage compartment Reflectors to improve night visibility Low Profile CE marked Finish: Powder Coat Green - 20-4505-7000 Finish: Durable Powder Coat Tronair Blue - 20-4505-7000SP With Booster Includes Standard Features: CE Marked 2,200 psi (151.7 bar) oxygen intensifier (booster) Intensifier (booster)
