Part 208012
1 listing from 1 supplier (SkyGeek) · $66.16. Prices refresh weekly.
Description

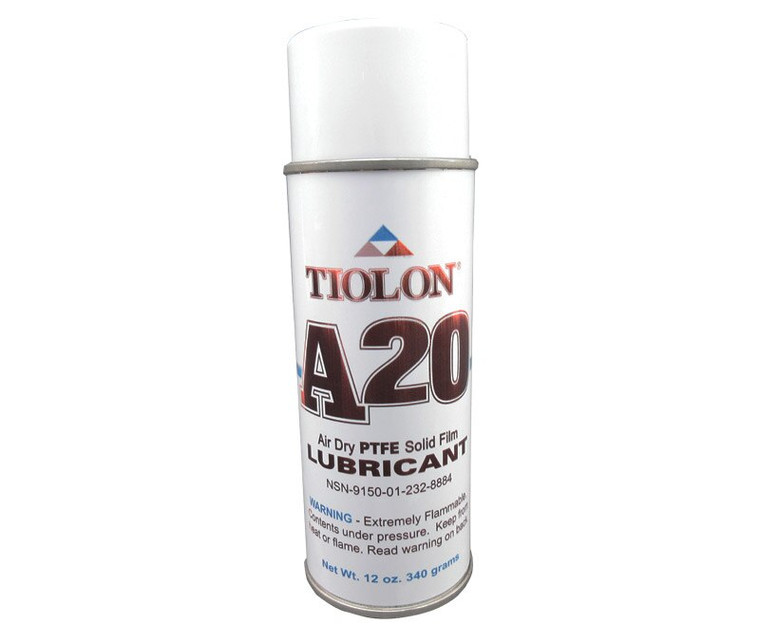

Approvals and Conformities NSN 9150-01-232-6884 Alternate PN#s 5529526 230219ITL Product Attributes Country of Origin United States Size 12 oz Shipping Weight 1.2 pounds ECCN EAR99 Color Family White Manufacturer P/N TIOLON A20 Schedule B Code 2711.29.0000 Pack Quantity 1 Color White TIODIZE® TIOLON® 20 is a universally effective PTFE lubricant pigment, suspended in a fast-drying thermoplastic resin. It is capable of coating metal, rubber, glass, wood and plastic substrates. Tiolon A-20 is specially designed for low-friction and light loads. Moving parts wear longer and need less maintenance when coated with Tiolon A20. This AIR CURE lubricant allows applications where conventional bake-on or sintered PTFE coatings cannot be considered. The static coefficient of friction of the coating, when properly applied, will be between .06 to .09. A coating thickness of .0002 to .0007 inches generally provides the optimum low friction properties. Features Excellent Lubricity Room Temperature Cure Easy Application Thin Film Good Surface Adhesion to many Substrates Abrasion Resistance Translucent Coating Lubricant: PTFE (Teflon®) Binder: Thermoplastic Resin Consistency: Ready to Use Color: Translucent Density: 7.9 lbs/gal (.948 KG/liter) Flash Point: 35°F Close Cup Shelf-Life: Six Months Coverage: 500 sq. ft./gal. @ .0004 inch (12.227 sq. meters/liter) Coefficient of Friction: .06 to .09 Static Intermittent Temperature: 500°F Film Thic
