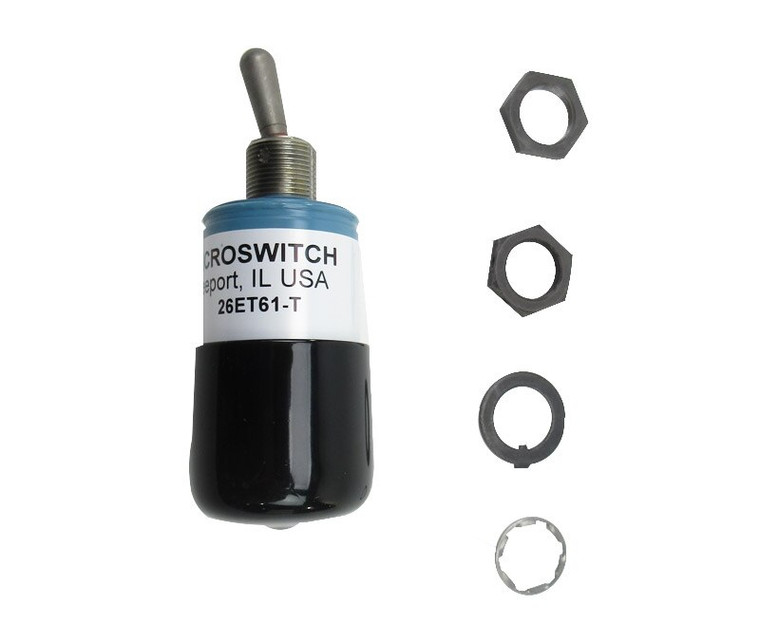

Part 26ET61-T
1 listing from 1 supplier (SkyGeek) · $1,199.67. Prices refresh weekly.
Description
Approvals and Conformities NSN 5930-01-015-4378 MIL-SPEC# MIL-S-5594/2 Alternate PN#s M5594/2-1 Product Attributes Country of Origin United States Shipping Weight 0.05 pounds ECCN 9A991.d Manufacturer P/N 26ET61-T Schedule B Code 8536.50.9065 Pack Quantity 1 Body Style : Bushing Mount Body Diameter : 0.970 Inches Minimum And 1.030 Inches Maximum Bushing Length : 0.455 Inches Minimum And 0.485 Inches Maximum Actuator Style : Round Actuator Diameter : 0.235 Inches Minimum And 0.245 Inches Maximum Actuator Height : 0.690 Inches Nominal Actuator Position-Action Relationship : Up Position Maintained And Down Position Momentary Maximum Voltage Rating In Volts : 28.0 Dc Mounting Surface To Terminal End Distance : 1.870 Inches Maximum Inclosure Type : Fully Inclosed Mounting Method : Threaded Bushing Thread Quantity Per Inch : 32 Nominal Thread Size : 0.469 Inches Nonpile-Up Contact Arrangement : 2 Pole, Double Throw, One Position Momentary Single Switch Unit Contact Load Current Rating At Maximum Rated Voltage : 4.000 Amperes Resistive Dc And 2.500 Amperes Inductive Dc And 4.000 Amperes Motor Dc Special Features : Incl Magnetic Hold-In For Down Position Test Data Document : 81349-Mils5594 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Typedata On Certain Enviro
