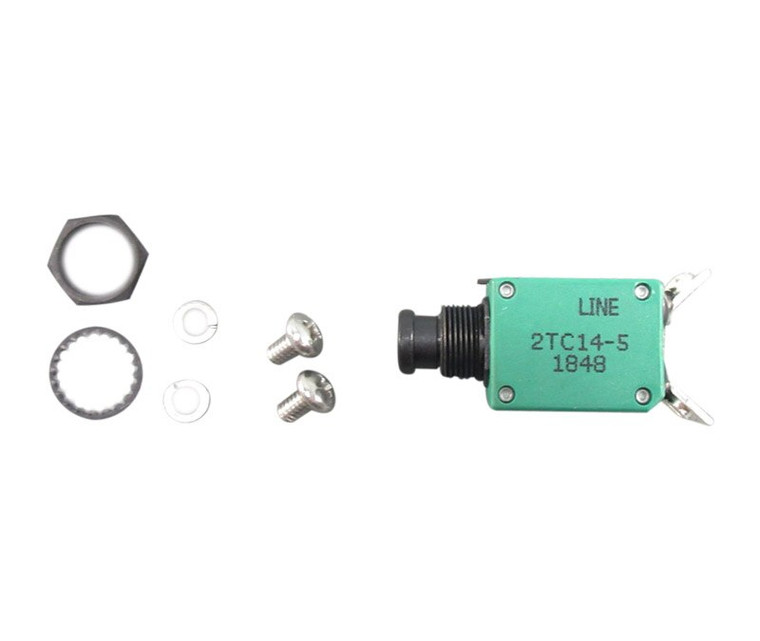

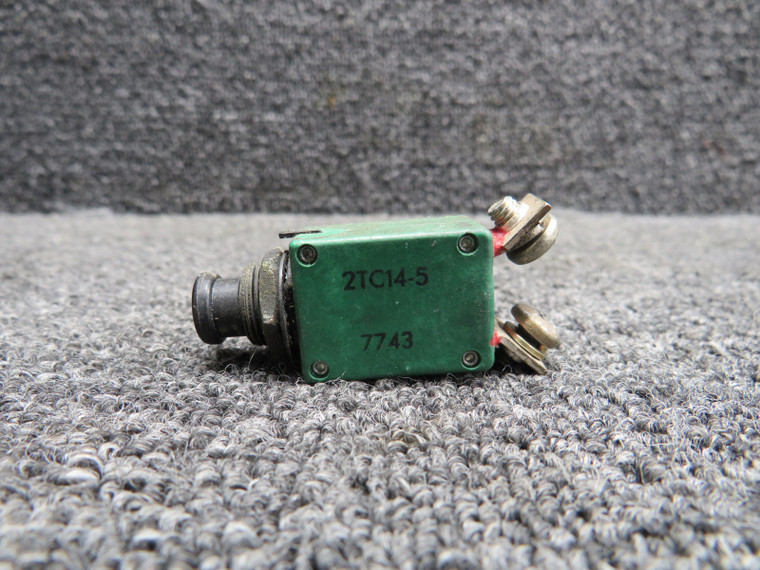

Part 2TC14-5

Price trend · weekly low by condition

Description

Approvals and Conformities NSN 5925-01-093-8477 Alternate PN#s 2137159G-5, 4310-003-5 Product Attributes Country of Origin United States Size 5 AMP Shipping Weight 0.05 pounds ECCN 9A991.d Color Family Green Manufacturer P/N 2TC14-5 Schedule B Code 8536.20.0040 Pack Quantity 1 Ship Dimensions 3 x 2 x 1 inches Color Green Bushing Length: 0.250 Inches Nominal Body Length: 1.781 Inches Maximum Body Width: 0.750 Inches Nominal Case Material: Plastic Center To Center Distance Between Terminals Parallel To Length: 0.704 Inches Nominal Fragility Factor: Moderately Rugged Mounting Surface To Terminal End Distance: 1.218 Inches Nominal Pole Quantity: 1 Mounting Facility Type And Quantity: 1 Threaded Bushing Storage Type: General Purpose Warehouse Thread Quantity Per Inch: 32 Maximum Continuous Load Current Rating Per Pole: 5.0 Amperes Ac Single Location And 5.0 Amperes Dc Single Location Operating Voltage Type And Rating Per Pole In Volts: 120.0 Ac Single Location And 30.0 Dc Single Location Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps: 2000.0 Ac Single Location And 5000.0 Dc Single Location Circuit Protection Type: Overcurrent Single Location Trip Release Method: Thermal Single Location Trip Release Characteristic: Time Delay Single Location Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent: 150.0 Single Location Reset Method: Manual Main Contact Tripping Mechanism Type: Trip Free Manual

Price spread · 3 priced listings

Each dot is one listing (hover for supplier & condition); color = condition.

Price by condition · median
