Part 2TC2-2-1-2
Klixon · 1 listing from 1 supplier (SkyGeek) · $38.74. Prices refresh weekly.
Description

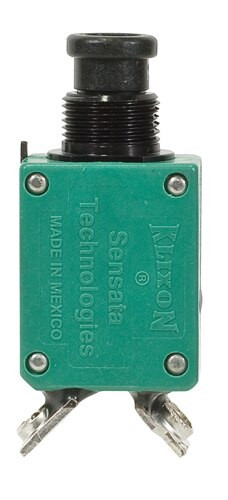

Approvals and Conformities NSN 5925-00-224-7426 MIL-SPEC# MIL-C-5809 Alternate PN#s MS3320-2-1/2 Product Attributes Country of Origin United States Size 2-1/2 AMP Shipping Weight 0.05 pounds ECCN 9A991.d Color Family Green Manufacturer P/N 2TC2-2-1/2 Schedule B Code 8536.20.0040 Pack Quantity 1 Ship Dimensions 2 x 1 x 1 inches Color Green Klixon 2TC2-2-1/2 Circuit Breaker - 2-1/2 AMP Approvals/References/Specification Rockwell-Collins Part Number: 260-1000-030 US Military Specification: MS3320-2-1/2 Body Style: Single Pole Type Bushing Length: 0.250 Inches Nominal Body Length: 0.781 Inches Maximum Body Width: 0.593 Inches Maximum Case Material: Plastic Center To Center Distance Between Terminals Parallel To Length: 0.500 Inches Nominal Fragility Factor: Moderately Rugged Mounting Surface To Terminal End Distance: 1.343 Inches Maximum Pole Quantity: 1 Mounting Facility Type And Quantity: 1 Threaded Bushing W/Panel Seal Storage Type: General Purpose Warehouse Thread Quantity Per Inch: 32 Maximum Continuous Load Current Rating Per Pole: 2.5 Amperes Ac Single Location And 2.5 Amperes Dc Single Location Operating Voltage Type And Rating Per Pole In Volts: 115.0 Ac Single Location And 28.0 Dc Single Location Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps: 5000.0 Ac Single Location And 2500.0 Dc Single Location Circuit Protection Type: Overcurrent Single Location Trip Release Method: Thermal Single Loc
