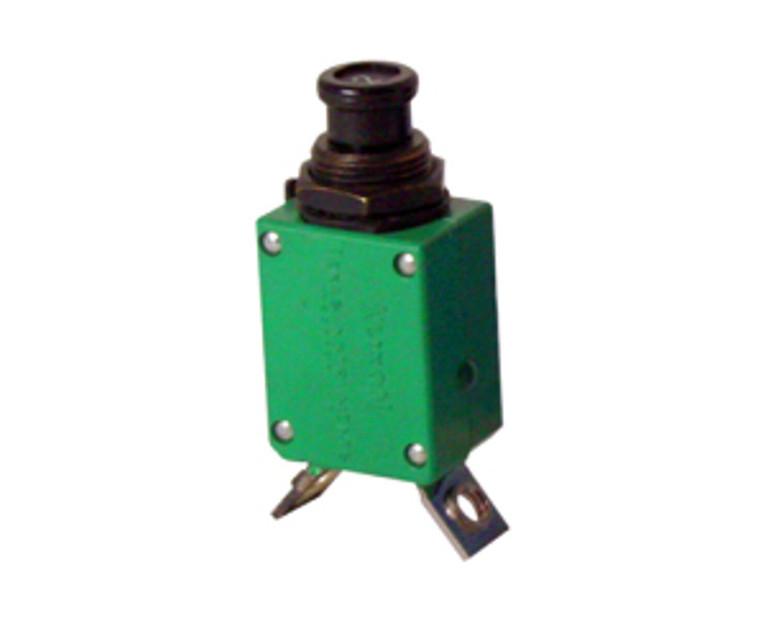

Part 2TC2-4
2 listings from 2 suppliers (CostAero, SkyGeek) · $38.53 – $39.68. Prices refresh weekly.
Description
Approvals and Conformities NSN 5925-00-224-7474 MIL-SPEC# MIL-C-5809 Alternate PN#s MS3320-4 Product Attributes Country of Origin United States Shipping Weight 0.05 pounds ECCN 9A991.d Color Family Green Manufacturer P/N 2TC2-4 Schedule B Code 8536.20.0040 Pack Quantity 1 Color Green Klixon 2TC2-4 Circuit Breaker - 4 AMP Alliant Techsystems Part Number: 2612507-5 Rockwell-Collins Part Number: 260-1000-040 US Military Specification: MS3320-4 Body Style: Single Pole Type Bushing Length: 0.250 Inches Nominal Body Length: 0.781 Inches Maximum Body Width: 0.593 Inches Maximum Case Material: Plastic Center To Center Distance Between Terminals Parallel To Length: 0.500 Inches Nominal Mounting Surface To Terminal End Distance: 1.343 Inches Maximum Pole Quantity: 1 Mounting Facility Type And Quantity: 1 Threaded Bushing Storage Type: General Purpose Warehouse Thread Quantity Per Inch: 32 Maximum Continuous Load Current Rating Per Pole: 4.0 Amperes Ac Single Location Operating Voltage Type And Rating Per Pole In Volts: 115.0 Ac Single Location Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps: 3500.0 Ac Single Location Circuit Protection Type: Overcurrent Single Location Trip Release Method: Thermal Single Location Trip Release Characteristic: Time Delay Single Location Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent: 138.0 Single Location Reset Method: Manual Main Contact Tripping Mechanism Ty
