Part 3-1393247-6
1 listing from 1 supplier (SkyGeek) · $71.96. Prices refresh weekly.
Description

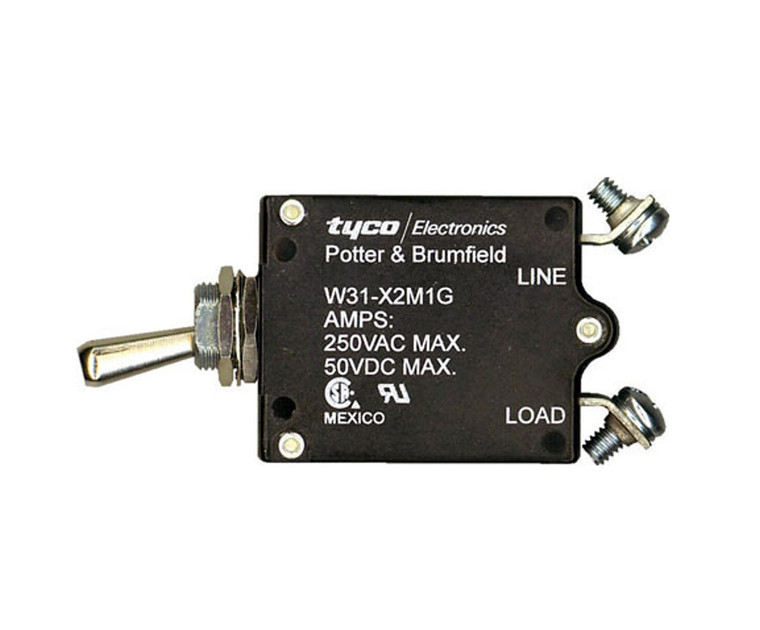

Approvals and Conformities NSN 5925-00-043-1333 Alternate PN#s W31-X2M1G-25 Product Attributes Country of Origin Mexico Size 25 AMP Shipping Weight 0.13 pounds ECCN EAR99 Color Family Black Manufacturer P/N W31-X2M1G-25 Schedule B Code 8536.20.0040 Pack Quantity 1 Color Black The TE Connectivity 3-1393247-6 Model W31-X2M1G-25 Circuit Breaker is a Potter and Brumfield Thermal Circuit Breaker with a toggle actuator and wire termination with 8-32 screws at a 90° angle. It carries a 25A current and 50 VDC, 250 VAC operating voltage. Has an interrupt capacity of 2000 A for 50 VDC and 1000 A for 240 VAC. Trips at 200% overload within 6 to 22 seconds. Features Product Type Features: Product Type: Circuit Breaker Series: W31 Actuator Style: Toggle Termination Type: 8-32 Screws 90° to Each Other (Screws and Washers Installed) Electrical Characteristics: Current Rating (A): 25 Operating Voltage, Max.: 50 VDC, 250 VAC Contact Features: Number of Poles: 1 Trip Time at 200%: 6 to 22 Seconds Interrupt Capacity: 2,000 A @ 50 VDC or 1,000 A @ 240 VAC Mounting Options: Two Hex Nuts/Lockwasher Mounting Bushing: 15/32"-32 Threaded Bushing .320" Long Double "D", Silver Color Toggle Color: Silver Metal, Round with Amp Rate Marking Configuration Features: Circuit Function: Series Trip Industry Standards: RoHS/ELV Compliance: RoHS/Not ELV Compliant Lead Free Solder Processes: Not relevant for lead free process RoHS/ELV Compliance History: Conv
