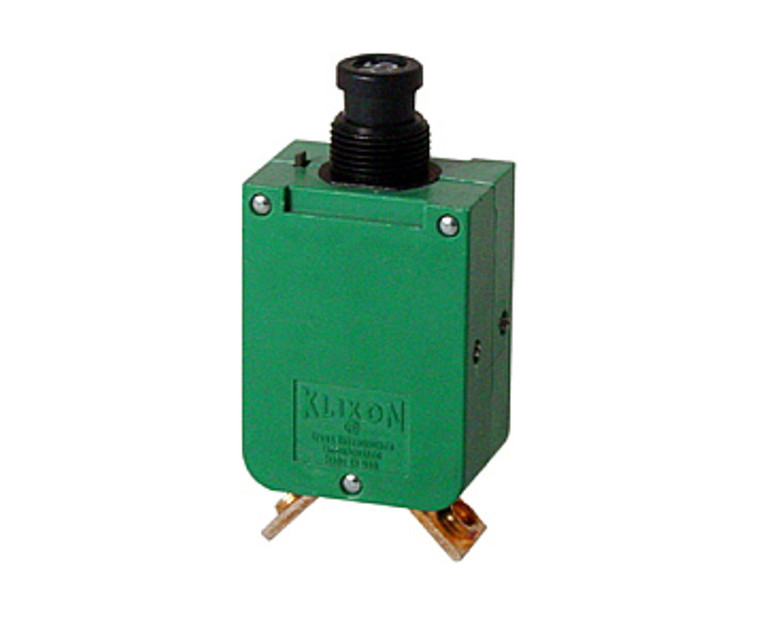

Part 3TC7-30
2 listings from 2 suppliers (CostAero, SkyGeek) · $123.14 – $144.44. Prices refresh weekly.
Description
The 3TC7 series single-phase circuit breakers provide reliable state-of-the-art circuit protection for aerospace systems. The compact and lightweight design makes these circuit breakers well suited for aircraft avionics and electronic systems. The 3TC series ratings is coordinated so any rating will trip before another rating twice its capacity in the event of a fault. Ambient temperature compensation allows the 3TC circuit breakers to operate where temperatures exceeds the 160°F maximum of non–ambient compensated thermal circuit breakers and may also operate in temperatures as high as 150°F without derating the circuit breaker while eliminating the need for added cooling. Includes hardware. Features This 3TC7 series circuit breaker is rated for 30 amps. Compact & lightweight Trip–free design AS58091 qualified Coordinated ratings High vibration resistance (option) High interrupting capacity Typical use: Where ambient temperature exceeds the 160°F (71°C); maximum of non–ambient compensated thermal circuit breakers Specifications Weight: 0.1 lb, max. Dimensions: 1.094 x 0.75 x 1.49 in Current Rating:30 Amps Vibration: 10G Mechanical Shock: 30G, peak Acceleration: 10G Sand and Dust: 12 hr Corrosion: salt spray 96 hr Moisture: 10 days Explosion Proof: while interrupting rupture currents Interrupt Current: 15–35 amps: 6,000 amps @ 28 VDC 15–35: 2,000 amps @ 120 VAC, 400 Hz 25 amps: 1,800 amps @ 120 VAC, 400 Hz Endurance: 2500 cycles: 120 VAC, 400 Hz (indu
