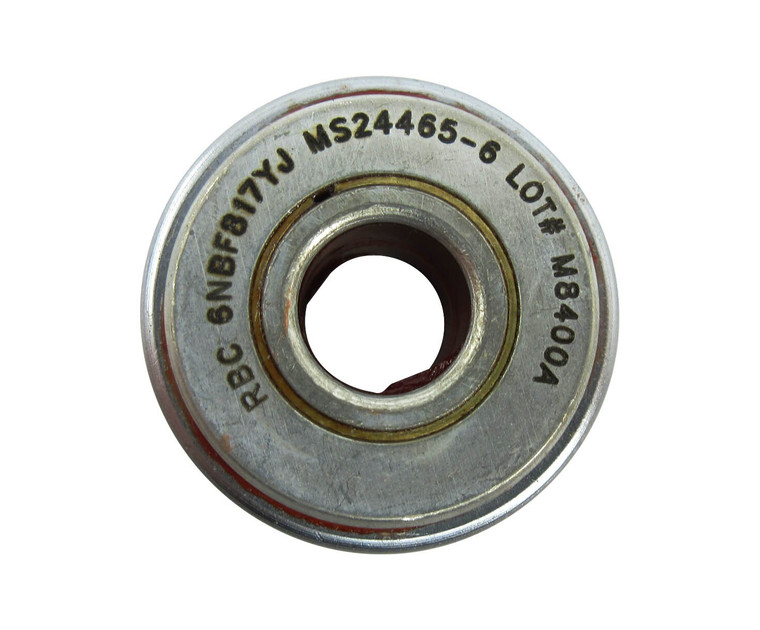

Part 452-429

Description

Approvals and Conformities MIL-SPEC# MS24465-6 Product Attributes Country of Origin United States Shipping Weight 0.01 pounds ECCN 9A991.d Manufacturer P/N 452-429 Pack Quantity 1 This is a non-separable unit, comprising an inner ring, needle rollers, retaining washers and outer ring made extra-thick to better withstand rolling loads. The end washers are fastened to the inner ring. Type NBF has a single row of rollers.Lubrication grooves and holes are provided for relubrication in the inner ring only, since the outer ring must serve as a roller.For protection from corrosion under the heavy rolling loads, the O.D. of the bearing is chrome plated. Other exposed surfaces, as mounted, are cadmium plated,or zinc-nickel plated.Inner Diameter: 0.375"Outer Diameter: 1.0625"Width: 0.500"Height: 0.375"Shaft Fillet (max): 0.022End Washer Diameter: 0.938"Inner Ring Groove Width0.188"
