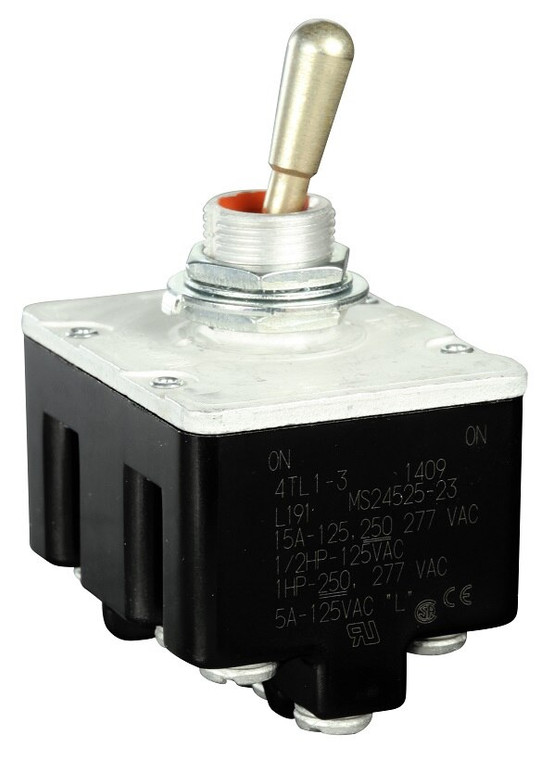

Part 4TL1-3
Honeywell · 4 listings from 2 suppliers (BAS Part Sales, SkyGeek) · $40.00 – $113.20. Prices refresh weekly.
Cross references
Supplier data links this part number to: MS2452523
Price trend · weekly low by condition
| Week | Condition | Listings | Low | Avg |
|---|---|---|---|---|
| 2026-W35 | used | 3 | $40 | $40 |
| 2026-W35 | new | 1 | $113 | $113 |
Description
Approvals and Conformities NSN 5930-00-660-3954 MIL-SPEC# MIL-DTL-3950 MIL-S-3950 Alternate PN#s MS24525-23 973.52.17.403 Product Attributes Country of Origin United States Shipping Weight 0.05 pounds ECCN 9A991.d Manufacturer P/N 4TL1-3 Schedule B Code 8536.50.9065 Pack Quantity 1 Body Style : Bushing Mount Overall Length : 1.340 Inches Nominal Overall Height : 2.500 Inches Nominal Overall Width : 1.660 Inches Nominal Bushing Length : 0.455 Inches Minimum And 0.485 Inches Maximum Body Length : 1.340 Inches Maximum Body Width : 1.660 Inches Maximum Body Height : 0.940 Inches Minimum And 0.980 Inches Maximum Actuator Style : Round Actuator Diameter : 0.237 Inches Minimum And 0.243 Inches Maximum Actuator Height : 1.135 Inches Minimum And 1.165 Inches Maximum Actuator Position-Action Relationship : Up Position Maintained And Down Position Maintained Maximum Voltage Rating In Volts : 115.0 Ac And 28.0 Dc End Item Identification : Lmg30/F4/S3A/Uh1/B52/Ch47/C135/C130/F111/C5/F14 Aircraft, M551 Sheridan/Tow/Stratigic Weapons System Inclosure Type : Fully Inclosed Mounting Method : Threaded Bushing Features Provided : Actuator Seal Thread Quantity Per Inch : 32 Nominal Thread Size : 0.469 Inches Nonpile-Up Contact Arrangement : 4 Pole, Double Throw, Both Positions Maintained Single Switch Unit Contact Load Current Rating At Maximum Rated Voltage : 20.000 Ampere
Price spread · 4 priced listings
Each dot is one listing (hover for supplier & condition); color = condition.
Price by condition · median
BAS Part Sales
BAS Part Sales
BAS Part Sales
SkyGeek
