Part 6-1393246-6
1 listing from 1 supplier (SkyGeek) · $51.02. Prices refresh weekly.
Description

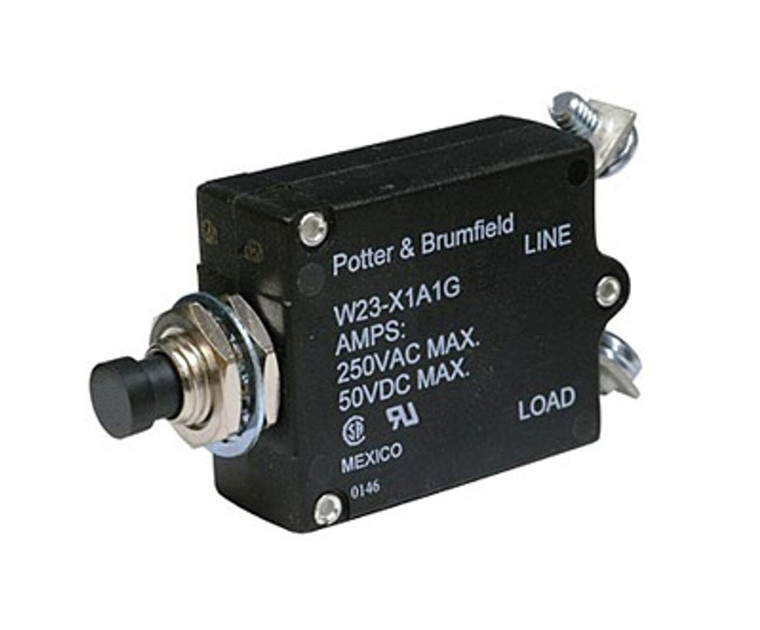

Approvals and Conformities NSN 5925-01-400-2998 Alternate PN#s W23-X1A1G-15 Product Attributes Country of Origin Mexico Size 15 AMP Shipping Weight 0.13 pounds ECCN EAR99 Color Family Black Manufacturer P/N W23-X1A1G-15 Schedule B Code 8536.20.0040 Pack Quantity 1 Color Black The Tyco Elcon W23X1A1G15 Circuit Breaker is a Potter and Brumfield Thermal Circuit Breaker with a push/pull actuator and wire termination with 8-32 screws at a 90° angle. It carries a 15A current and 50 VDC, 250 VAC operating voltage. Has an interrupt capacity of 2000 A for 50 VDC and 1000 A for 240 VAC. Trips at 200% overload within 6 to 22 seconds. Features Product Type Features: Product Type: Circuit Breaker Series: W23 Actuator Style: Push/Pull Button Color: Black with White Amp Rate Marking and White Trip Band Termination Type: 8-32 Screws 90° to Each Other (Screws and Washers Installed) Electrical Characteristics: Current Rating (A): 15 Operating Voltage, Max.: 50 VDC, 250 VAC Contact Features: Number of Poles: 1 Trip Time at 200%: 6 to 22 Seconds Interrupt Capacity: 2,000 A @ 50 VDC or 1,000 A @ 240 VAC Mounting Options: Two Hex Nuts/Lockwasher Mounting Bushing: 3/8"-24 Threaded Bushing .375" [9.53 mm] Long, Silver Color Configuration Features: Circuit Function: Series Trip Industry Standards: RoHS/ELV Compliance: RoHS/Not ELV Compliant Lead Free Solder Processes: Not relevant for lead free process RoHS/ELV Compliance History: Converted
