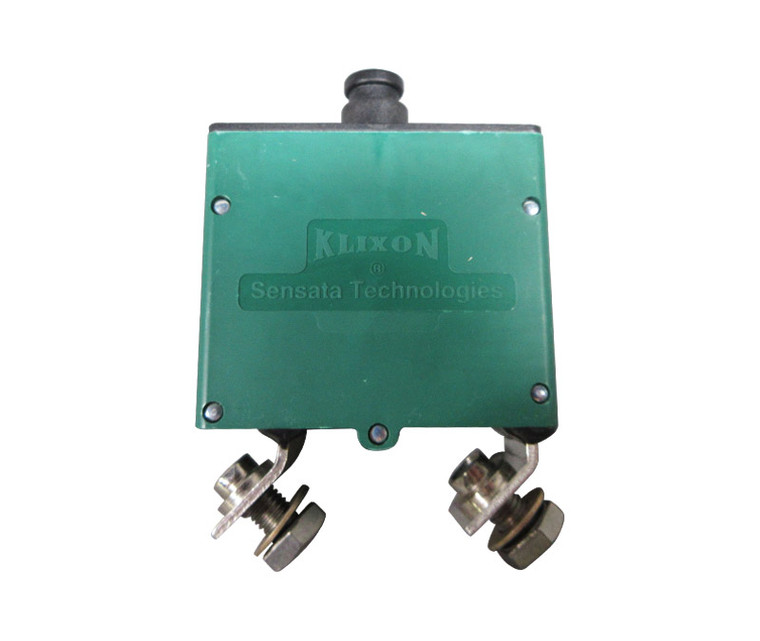

Part 6752-100-80
2 listings from 2 suppliers (CostAero, SkyGeek) · $475.00 – $483.44. Prices refresh weekly.
Description
Approvals and Conformities MIL-SPEC# MS25361-80 Alternate PN#s MS25361-80 Product Attributes Country of Origin United States Shipping Weight 0.05 pounds ECCN 9A991.d Manufacturer P/N 6752-100-80 Schedule B Code 8536.20.0040 Pack Quantity 1 Klixon 6752-100 series thermal-magnetic circuit breakers are designed and manufactured to meet stringent military standards with the reliability of the 6752 design. The 6752-100 is similar to the 6752-12 in size, and includes current ratings ranging from 50 to 100 amps.The higher interrupting capacity, vibration resistance and longer cycling life of the 6752-100 series exceed previous military standards. In addition, the 6752-100 series provide ambient compensation, fault coordination of all ratings an option for auxiliary circuits.mbient Temperature CompensationThe 6752-100 series circuit breakers maintain their performance capabilities by means of a thermal compensator in the temperature range of -40°C to 70°C.igh Short Circuit CapacityA deionizing grid and magnetic assist enable the 6752-100 series to successfully interrupt four fault currents of 6,000 amperes - two at sea level and two at 60,000 feet - on either a 120 VAC, 400 Hz system or a 30 VDC system. Performance Data Interrupt Current 120VAC, 400 Hz: 3,500 amps28 VDC: 6,000 amps Endurance 5,000 cycles: 120 VAC, 400 Hz inductive5,000 cycles: 120 VAC, 400 Hz resistive2,500 cycles: 28 VDC, 400 Hz inductive5,000 cycles: 28 VDC, 400 Hz resistive5,0
Price spread · 2 priced listings
Each dot is one listing (hover for supplier & condition); color = condition.
SkyGeek
CostAero
