Part 7101SH3ZQE
2 listings from 2 suppliers (CostAero, SkyGeek) · $14.98 – $17.54. Prices refresh weekly.
Description

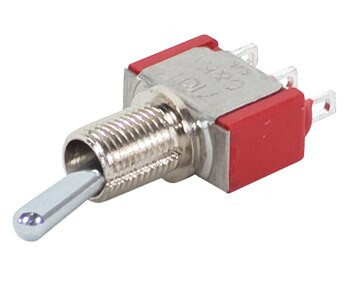

The 7000 series miniature toggle switch has silver contact solder lug terminations. The threaded bushing is designed for panel mount installations with 1/4″” opening. Version 7101SH3ZQE is a single-pole double-throw miniature toggle switch. Positions: ON-ON Features Threaded panel mount 10mΩ at 2 to 4VDC Initial contact resistance 10⁹Ω Minimum insulation resistance 1000VRMS at sea level Minimum dielectric strength Epoxy terminal-seal compatible with bottom wash cleaning RoHS Compliant Life: 100,000 make-and-break cycles at full load Specifications Bushing: 1/4-40 UNS-2A Temperature Range: -22ºF to 185ºF (–30ºC to 85ºC) Contact current max: 5A Contact Voltage AC: 115V nominal Contact Voltage DC: 28V Contact configuration: Single-pole, double-throw (SPDT) Switch operation: ON-ON
