Part 7-1393246-7
1 listing from 1 supplier (SkyGeek) · $37.11. Prices refresh weekly.
Description

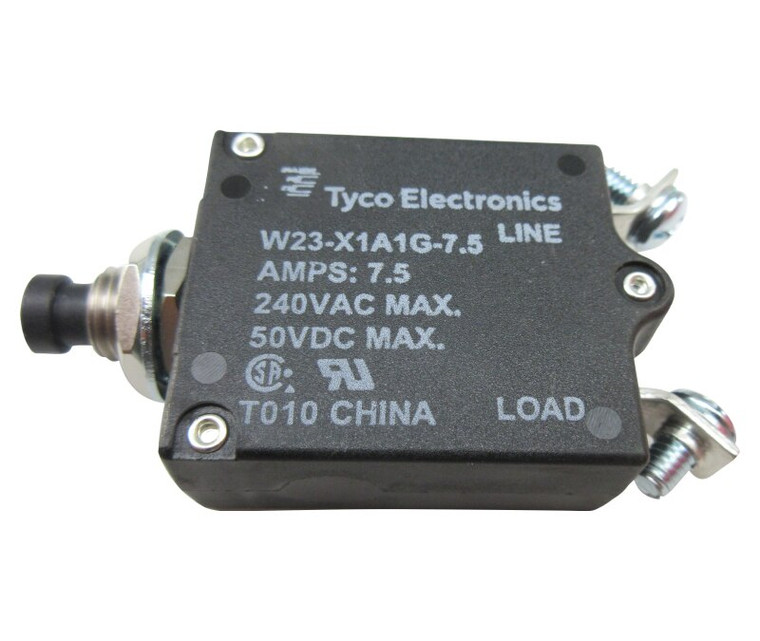

Approvals and Conformities Alternate PN#s W23-X1A1G-7.5 Product Attributes Country of Origin Mexico Size 7-1/2 AMP Shipping Weight 0.13 pounds ECCN EAR99 Color Family Black Manufacturer P/N W23-X1A1G-7.5 Schedule B Code 8536.20.0040 Pack Quantity 1 Color Black The W23 is UL 1077 Recognized as Supplementary Protectors, File E69543, and CSA Certified as Appliance Component Protectors, File LR15734. Product Type Features: Product Type = Circuit Breaker Actuator Style = Push/Pull Button Color = Black with White Amp Rate Marking and White Trip Band Termination Type = 8-32 Screws 90° to Each Other (Screws and Washers Installed) Electrical Characteristics: Current Rating (A) = 7.5 Operating Voltage, Max. = 50 VDC, 250 VAC Body Related Features: Series = W23 Contact Related Features: Number of Poles = 1 Trip Time at 200% = 6 to 22 Seconds Interrupt Capacity = 2,000 A @ 50 VDC or 1,000 A @ 250 VAC Mounting Options = Two Hex Nuts/Lockwasher Mounting Bushing = 3/8"-24 Threaded Bushing .375" [9.53 mm] Long, Silver Color Configuration Related Features: Circuit Function = Series Trip
