Part 7270-1-25
2 listings from 2 suppliers (CostAero, SkyGeek) · $507.36 – $595.13. Prices refresh weekly.
Description

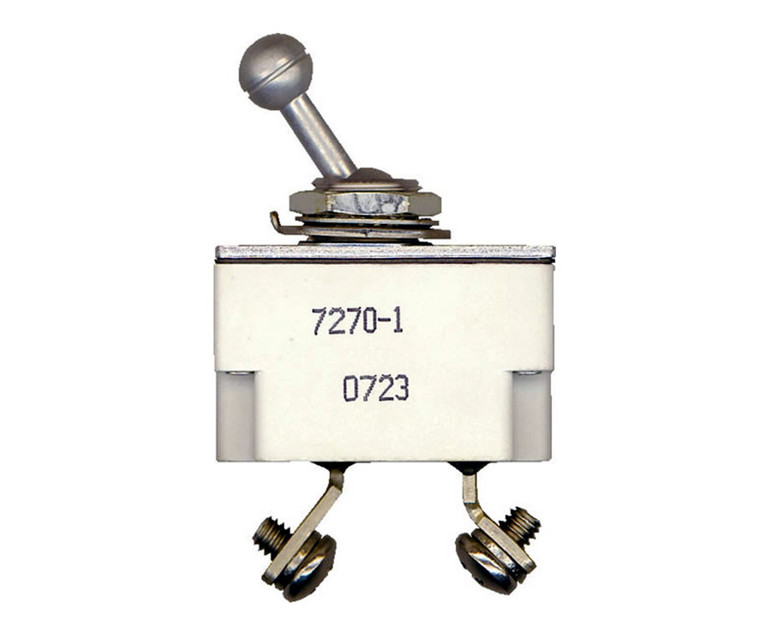

Approvals and Conformities NSN 5925-00-842-7297 MIL-SPEC# MIL-C-5809 Alternate PN#s MS24509-A-25, MS24509-25 Product Attributes Country of Origin United States Size 25 AMP Shipping Weight 1.5 pounds ECCN 9A991.d Color Family White Manufacturer P/N 7270-1-25 Schedule B Code 8536.20.0040 Pack Quantity 1 Ship Dimensions 2 x 2 x 2 inches Color White Klixon 7270-1-25 Circuit Breaker Toggle Switch - 25 AMP Approvals/References/Specification US Military Specification: MS24509-25 US Military Specification: MS24509-A-25 Body Style: Single Pole Type Bushing Length: 0.250 Inches Nominal Body Length: 1.375 Inches Maximum Body Width: 0.750 Inches Maximum Case Material: Metal Center To Center Distance Between Terminals Parallel To Length: 0.906 Inches Nominal Mounting Surface To Terminal End Distance: 1.312 Inches Nominal Pole Quantity: 1 Mounting Facility Type And Quantity: 1 Threaded Bushing Storage Type: General Purpose Warehouse Thread Quantity Per Inch: 32 Maximum Continuous Load Current Rating Per Pole: 25.0 Amperes Ac Single Location And 25.0 Amperes Dc Single Location Operating Voltage Type And Rating Per Pole In Volts: 115.0 Ac Single Location And 28.0 Dc Single Location Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps: 3500.0 Ac Single Location And 6000.0 Dc Single Location Circuit Protection Type: Overcurrent Single Locat
Price spread · 2 priced listings
Each dot is one listing (hover for supplier & condition); color = condition.
SkyGeek
CostAero
