Part 7270-1-7.5
Klixon · 2 listings from 2 suppliers (BAS Part Sales, CostAero) · $100.00 – $414.86. Prices refresh weekly.
Description

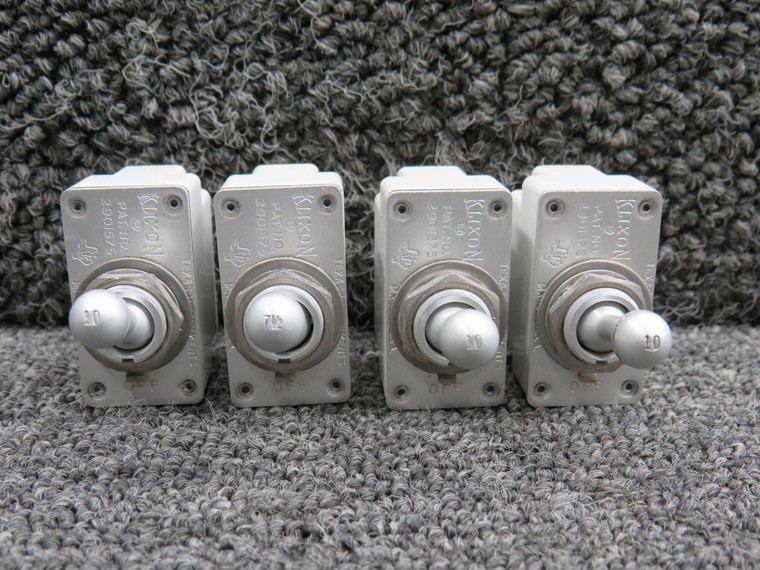

The Klixon® 7270 series circuit breakers are designed to utilize less space behind the panel while protecting wire and cable in aircraft and ground support equipment on 120 VAC, 400 Hz or 30 VDC systems. Inherently resistant to shock and vibration, the disc element is capable of calibration within close tolerances throughout the service life of the breaker. The 7270-1 series circuit breaker feature a single pole, toggle actuator. Includes hardware. Features This 7270-1 series circuit breaker is rated for 7.5 amps. Toggle actuator Trip-free operation Snap-acting thermal element Small size Light weight MIL-C-5809 qualified Current ratings (3 to 35 amps) High interrupting capacity Specifications Weight: 39 grams maximum Current Rating: 7.5 amps Vibrations: 10G minimum, 50–500 Hz Mechanical shock: 30G Acceleration: 10G Endurance: 5,000 cycles: 120 VAC. 400 Hz, inductive 5,000 cycles: 120 VAC 400 Hz, resistive 5,000 cycles: 30 VDC, inductive 2,500 cycles: 30 VDC, resistive 5,000 cycles: Mechanical, no load Mounting : Screw terminals and neck mounting
Price spread · 2 priced listings
Each dot is one listing (hover for supplier & condition); color = condition.
