Part 7270-5-35

‹ Parts search

Klixon · 5 listings from 4 suppliers (Aircraft Parts & Salvage, CostAero, SkyGeek, Yingling Aviation) · $40.00 – $463.80. Prices refresh weekly.

from $40
from $416
from $464

Cross references

Supplier data links this part number to: D7270535

Price trend · weekly low by condition

WeekConditionListingsLowAvg
2026-W35used 2$40 $58
2026-W35new 1$464 $464

Description

The Klixon® 7270 series circuit breakers are designed to utilize less space behind the panel while protecting wire and cable in aircraft and ground support equipment on 120 VAC, 400 Hz or 30 VDC systems. Inherently resistant to shock and vibration, the disc element is capable of calibration within close tolerances throughout the service life of the breaker. The 7270-5 series circuit breaker feature a single pole, bat handle toggle actuator. Includes hardware. Features This 7270-5 series circuit breaker is rated for 35 amps. Bat handle toggle actuator Trip-free operation Snap-acting thermal element Small size Light weight MIL-C-5809 qualified Current ratings (3 to 35 amps) High interrupting capacity Specifications Weight: 39 grams maximum Current Rating: 35 amps Vibrations: 10G minimum, 50–500 Hz Mechanical shock: 30G Acceleration: 10G Endurance: 5,000 cycles: 120 VAC. 400 Hz, inductive 5,000 cycles: 120 VAC 400 Hz, resistive 5,000 cycles: 30 VDC, inductive 2,500 cycles: 30 VDC, resistive 5,000 cycles: Mechanical, no load Mounting : Screw terminals and neck mounting

Price spread · 5 priced listings

$40
$416
$464
median Aircraft Parts & Salvage · $40 · used Klixon 2 Position Toggle Switch With Guard (7270-5-35) (click to open at supplier) Aircraft Parts & Salvage · $75 · used Switch Alternate Avionic Power (7270-5-35) (click to open at supplier) SkyGeek · $416 KLIXON® 7270-5-35 Circuit Breaker Toggle Switch - 35 AMP (click to open at supplier) CostAero · $436 7270-5 Series Circuit Breaker | 35 Amp Rating, Bat Toggle (click to open at supplier) Yingling Aviation · $464 · new 7270-5-35 (click to open at supplier) $40 $464

Each dot is one listing (hover for supplier & condition); color = condition.

Price by condition · median

used (2) $58
unlisted (2) $426
new (1) $464
Klixon 2 Position Toggle Switch With Guard (7270-5-35) Aircraft Parts & Salvage
Klixon 2 Position Toggle Switch With Guard (7270-5-35)
With guard P/N MS25224-1. Removed from 1980 Cessna 340A S#340A0975
used
$40.00 view at supplier ↗
Switch Alternate Avionic Power (7270-5-35) Aircraft Parts & Salvage
Switch Alternate Avionic Power (7270-5-35)
Removed from 1976 Cessna 340A S#340A0112
used
$75.00 view at supplier ↗

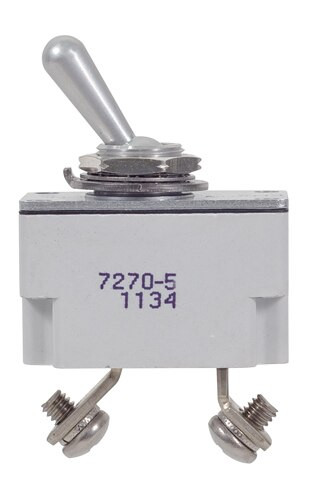

KLIXON® 7270-5-35 Circuit Breaker Toggle Switch - 35 AMP SkyGeek
KLIXON® 7270-5-35 Circuit Breaker Toggle Switch - 35 AMP
Approvals and Conformities Product Attributes Country of Origin United States Shipping Weight 0.05 pounds ECCN EAR99 Manufac…
$416.44 view at supplier ↗
7270-5 Series Circuit Breaker | 35 Amp Rating, Bat Toggle CostAero
7270-5 Series Circuit Breaker | 35 Amp Rating, Bat Toggle
The Klixon® 7270 series circuit breakers are designed to utilize less space behind the panel while protecting wire and cable in aircraft and…
$436.43 view at supplier ↗
🔩 Yingling Aviation
7270-5-35
BREAKER
new
$463.80 view at supplier ↗

Listed under cross-referenced part numbers

D7270-5-35 (Use: 7270-5-35) Klixon Toggle Circuit Breaker with Rocker Cover Guard BAS Part Sales
D7270535 D7270-5-35 (Use: 7270-5-35) Klixon Toggle Circuit Breaker with Rocker Cover Guard
$35.00 view ↗
