Part 7271-8-20

Description

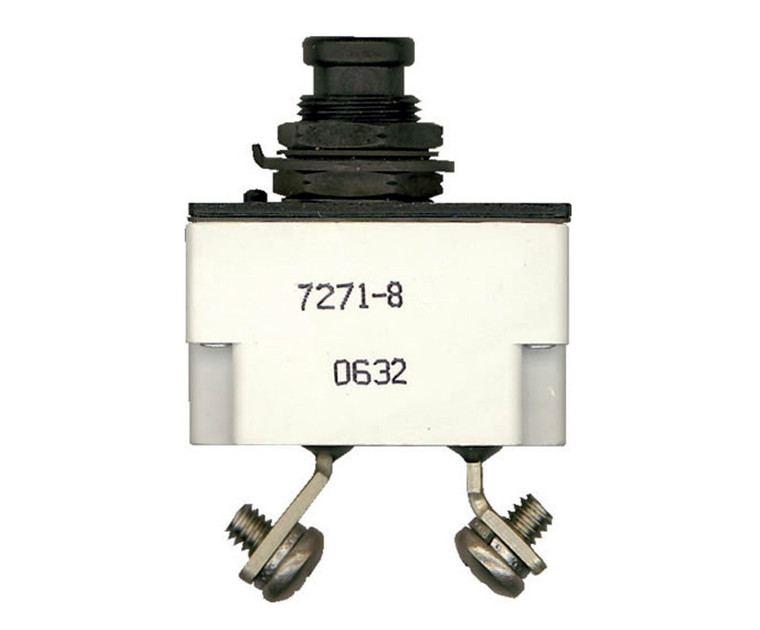

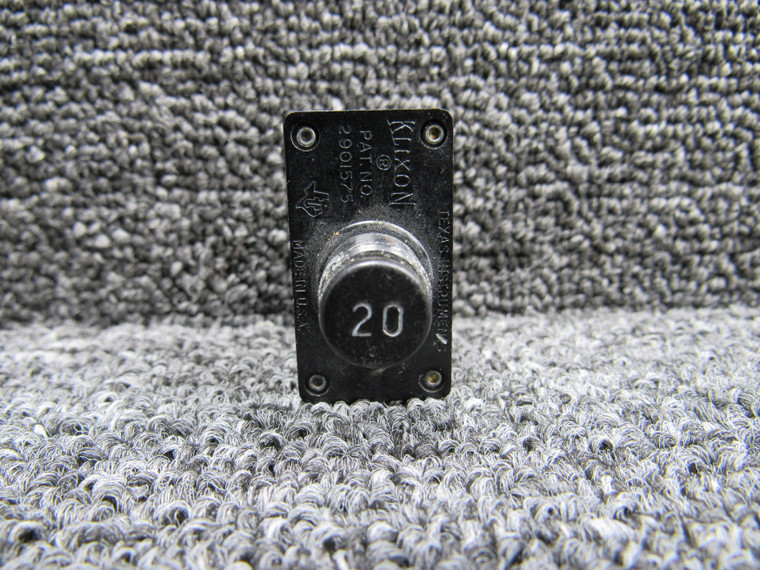

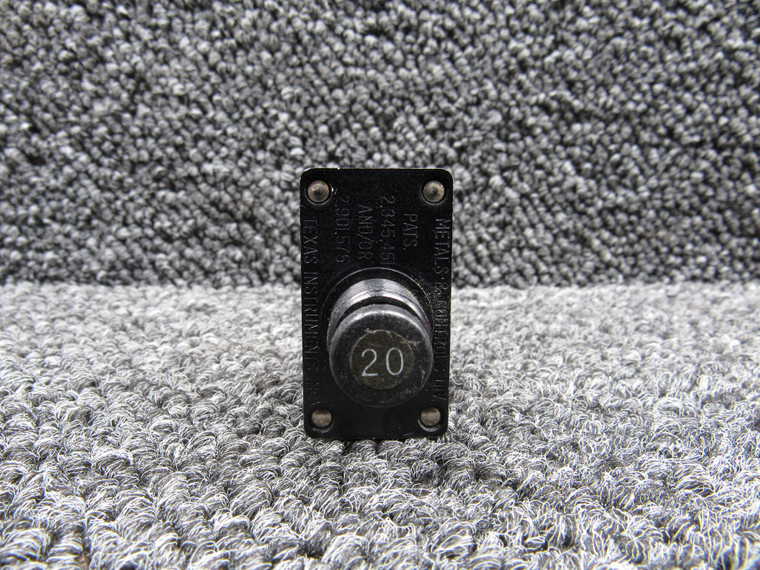

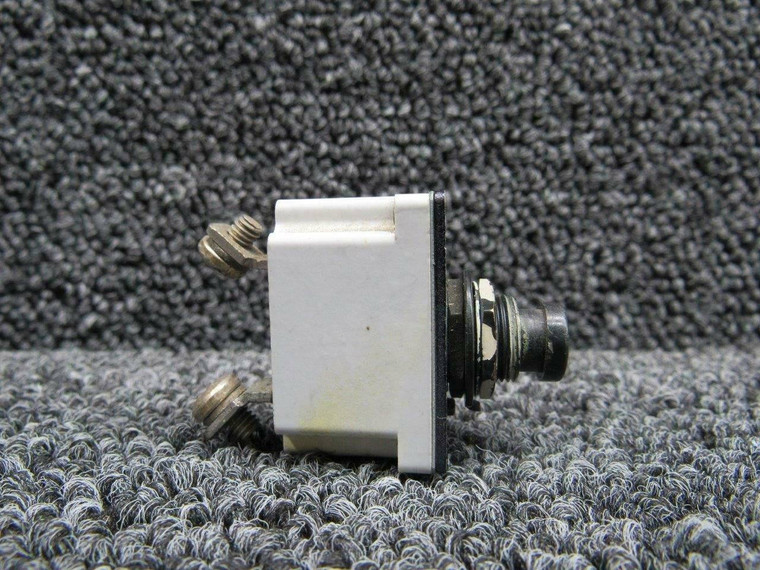

Approvals and Conformities Alternate PN#s MS24510-A-20, AS24510-A-20 Product Attributes Country of Origin United States Shipping Weight 0.05 pounds ECCN 9A991.d Manufacturer P/N 7271-8-20 Schedule B Code 8536.20.0040 Pack Quantity 1 KLIXON® 7271-8-20 20 AMP Circuit Breakers from SkyGeek are deigned to use less space than traditional circuit breakers while still delivering the same level of protection. Use the breakers on your aircraft or on ground support equipment for unbeatable protection for wires and cables. The circuit breakers are compatible with 120 VAC, 400 Hz and 30 VDC systems and may be neck mounted or mounted using a cover plate. The KLIXON® 7271-8-20 20 Circuit Breaker has a higher interrupting capability than a conventional design and the button style trip indicator allows for easy operation. Performance Data Interrupting Capacity 4,000 amps at 30 VDC, 3,500 amps at 120 VAC, 400 Hz Endurance 5,000 cycles: 120 VAC. 400 Hz, inductive5,000 cycles: 120 VAC 400 Hz, resistive5,000 cycles: 30 VDC, inductive2,500 cycles: 30 VDC, resistive5,000 cycles: Mechanical, no load Vibration 10G minimum, 50–500 Hz Shock 30G Acceleration 10G Weight 39 grams maximum (7270-1 and 7271-8)
