Part 7274-2-15

Description

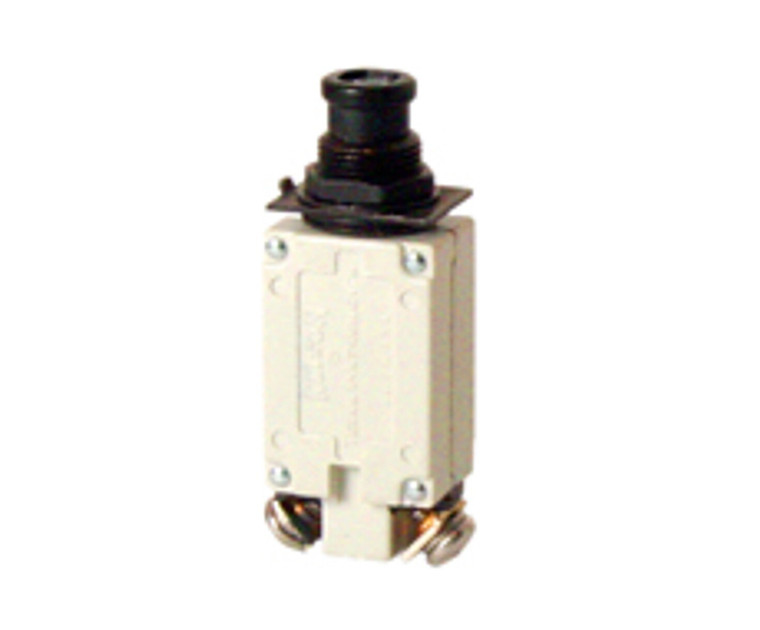

Klixon® 7274-2 series circuit breakers are small, lightweight, and low amperage devices specifically designed to protect aircraft and aerospace cables, and components. The 7274 features a trip–free, indicating reset button and is available in standard ratings from ½ to 20 amps. Includes hardware. Features This 7274-2 series circuit breaker is rated for 15 amps. Single-Phase, Non-Compensated Uses minimum space Light weight Trip-free design MIL-C-5809 qualified Low amp rating High vibration resistance Designed to protect military airborne vehicles and equipment Specifications Weight: 28g, maximum Current Rating: 15 amps Vibrations: 10G, minimum, 50 to 500 Hz Mechanical Shock: 35G Acceleration: 10G Interrupt Current: 0.50A – 5A: unlimited @ 28 VDC 7.50A – 15A: 2,000A @ 28 VDC 0.50A – 1.50A: unlimited @ 120 VAC, 400 Hz 2A – 5A: 800A @ 120 VAC, 400 Hz 7.50A – 20A: 500A @ 120 VAC, 400 Hz Endurance: 2,500 cycles: 120 VAC, 400 Hz inductive 5,000 cycles: 120 VAC, 400 Hz resistive 2,500 cycles: 30 VDC inductive 5,000 cycles: 30 VDC resistive 10,000 cycles: Mechanical, no load Voltage Drop (at nominal rated current): 0.25V @ 15A
