Part 7274-2-4
2 listings from 2 suppliers (CostAero, SkyGeek) · $47.67 – $55.91. Prices refresh weekly.
Description

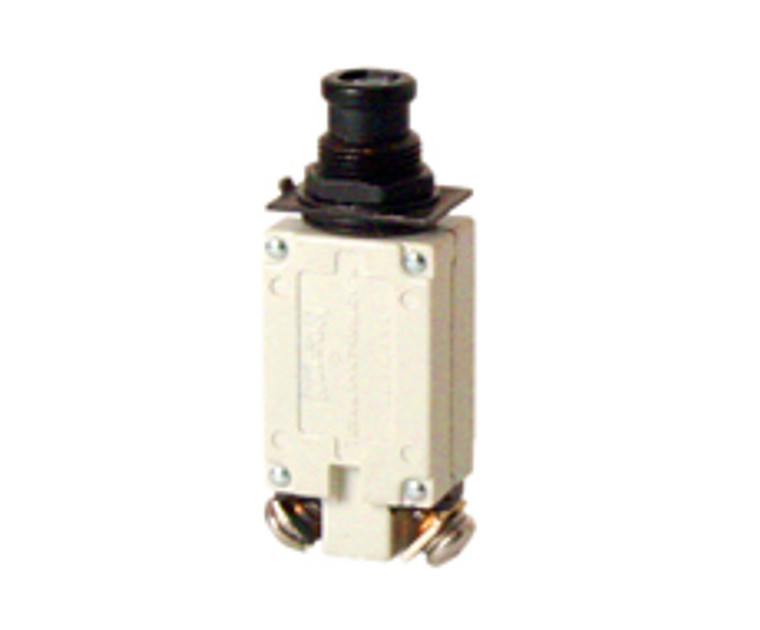

Approvals and Conformities NSN 5925-00-733-9243 MIL-SPEC# MIL-C-5809 Alternate PN#s MS26574-4 Product Attributes Country of Origin United States Size 4 AMP Shipping Weight 0.05 pounds ECCN 9A991.d Color Family White Manufacturer P/N 7274-2-4 Schedule B Code 8536.20.0040 Pack Quantity 1 Ship Dimensions 3 x 3 x 1 inches Color White Klixon 7274-2-4 Circuit Breaker - 4 AMP Approvals/References/Specification US Military Specification: MS26574-4 Body Style: Single Pole Type Bushing Length: 0.359 Inches Nominal Body Length: 0.744 Inches Nominal Body Width: 0.562 Inches Nominal Case Material: Plastic Center To Center Distance Between Terminals Parallel To Length: 0.593 Inches Nominal Mounting Surface To Terminal End Distance: 1.312 Inches Nominal Pole Quantity: 1 Mounting Facility Type And Quantity: 1 Threaded Bushing Storage Type: General Purpose Warehouse Thread Quantity Per Inch: 32 Maximum Continuous Load Current Rating Per Pole: 4.0 Amperes Ac Single Location And 4.0 Amperes Dc Single Location Operating Voltage Type And Rating Per Pole In Volts: 120.0 Ac Single Location And 30.0 Dc Single Location Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps: 800.0 Ac Single Location And 2000.0 Dc Single Location Circuit Protection Type: Overcurrent Single Location Trip Release Method: Thermal Single Location Trip Release Characteristic: Time Delay Single Location Ultimate Trip Rating Of Continuous Current Rating
Price spread · 2 priced listings
Each dot is one listing (hover for supplier & condition); color = condition.
SkyGeek
CostAero
