Part 7274-2-7.5

Cross references

Supplier data links this part number to: MS2657475

Description

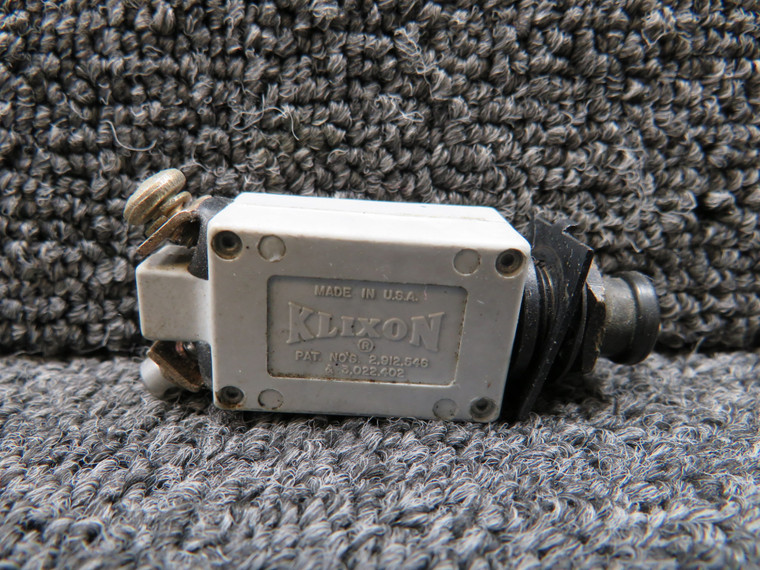

Approvals and Conformities NSN 5925-00-988-6837 MIL-SPEC# MIL-C-5809 Pilatus PN/Spec# 972.55.18.518 Alternate PN#s MS26574-7-1/2, 7274-2-7.5 Product Attributes Country of Origin United States Size 7-1/2 AMP Shipping Weight 0.05 pounds ECCN 9A991.d Color Family White Manufacturer P/N 7274-2-7-1/2 Schedule B Code 8536.20.0040 Pack Quantity 1 Ship Dimensions 4 x 4 x 1 inches Color White Klixon 7274-2-7-1/2 Circuit Breaker - 7-1/2 AMP Approvals/References/Specification Naval Sea Systems Command Specification: 5749067-117 Raytheon Technical Services Part Number: 525425 Pilatus Aircraft Part Number: 972.55.18.518 US Military Specification: MS26574-7-1/2 Body Style: Single Pole Type Bushing Length: 0.381 Inches Minimum And Body Length: 0.780 Inches Maximum Body Width: 0.580 Inches Maximum Case Material: Metal Center To Center Distance Between Terminals Parallel To Length: 0.562 Inches Minimum And 0.624 Inches Maximum Fragility Factor: Moderately Rugged Mounting Surface To Terminal End Distance: 1.420 Inches Maximum Pole Quantity: 1 Mounting Facility Type And Quantity: 1 Threaded Bushing W/Panel Seal Storage Type: General Purpose Warehouse Thread Quantity Per Inch: 32 Maximum Continuous Load Current Rating Per Pole: 7.5 Amperes Ac Single Location And 7.5 Amperes Dc Single Location Operating Voltage Type And Rating Per Pole In Volts: 115.0 Ac Single Location And 28.0 Dc Single Location Maximum Interrupting Capacity Current

Price spread · 4 priced listings

Each dot is one listing (hover for supplier & condition); color = condition.

Price by condition · median
