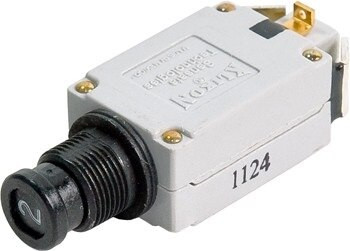

Part 7274-4-1-2

Description

Approvals and Conformities NSN 5925-00-121-9847 MIL-SPEC# MIL-C-5809 Alternate PN#s MS26574-1/2A, 7274-4-.5 Product Attributes Country of Origin United States Size 1/2 AMP Shipping Weight 0.05 pounds ECCN 9A991.d Color Family White Manufacturer P/N 7274-4-1/2 Schedule B Code 8536.20.0040 Pack Quantity 1 Color White  Bushing Length:  0.359 Inches Nominal  Body Length:  0.780 Inches Maximum  Body Width:  0.580 Inches Maximum  Case Material:  Metal  Center To Center Distance Between Terminals Parallel To Length:  0.593 Inches Nominal  Switch Contact Arrangement:  Single Pole, Single Throw, Normally Closed  Mounting Surface To Terminal End Distance:  1.420 Inches Maximum  Pole Quantity:  1  Mounting Facility Type And Quantity:  1 Threaded Bushing  Thread Quantity Per Inch:  32  Maximum Continuous Load Current Rating Per Pole:  500.0 Milliamperes Ac Single Location And 500.0 Milliamperes Dc Single Location  Operating Voltage Type And Rating Per Pole In Volts:  115.0 Ac Single Location And 28.0 Dc Single Location  Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps:  100.0 Ac Single Location And 100.0 Dc Single Location  Circuit Protection Type:  Overcurrent Single Location  Trip Release Method:  Thermal Single Location  Trip Release Characteristic:  Time Delay Single Location  Ultimate Trip Rating Of Continuous Current Rating Per Po
