Part 7274-4-3

‹ Parts search

Klixon · 2 listings from 2 suppliers (Aircraft Parts & Salvage, SkyGeek) · $7.50 – $52.95. Prices refresh weekly.

from $8
from $53

Description

Approvals and Conformities NSN 5925-00-080-5286 MIL-SPEC# MIL-C-5809 Alternate PN#s MS26574-3A Product Attributes Country of Origin United States Size 3 AMP Shipping Weight 0.05 pounds ECCN 9A991.d Color Family White Manufacturer P/N 7274-4-3 Schedule B Code 8536.20.0040 Pack Quantity 1 Ship Dimensions 2 x 1 x 1 inches Color White Single--Phase, Non-Compensated, Low AMP, High Performance Uses minimum space Light weight Trip--free design MIL-C-5809 qualified Current ratings (½ to 20 amps) High vibration resistance Vibration 10 G's minimum, 50-500 Hz Mechanical Shock 35 G's Acceleration 10 G's Weight 28gm max. Endurance 2500 cycles 5000 cycles 2500 cycles 5000 cycles 5000 cycles 120 VAC, 400 Hz Inductive 120 VAC, 400 Hz Resistive 30 VDC, Inductive 30 VDC, Resistive Mechanical, no load Trip Time Load Seconds 200% 2-20 500% 0.16-1.2 1000% 0.046-0.8 Calibration Temp ºC Min. ULT Trip Max. ULT Trip +22 115% 150% -55 135% 180% …

Price spread · 2 priced listings

$8
$30
$53
median Aircraft Parts & Salvage · $8 · used Klixon 3 Amp Circuit Breaker (7274-4-3) (click to open at supplier) SkyGeek · $53 KLIXON® 7274-4-3 Circuit Breaker - 3 AMP (click to open at supplier) $8 $53

Each dot is one listing (hover for supplier & condition); color = condition.

Price by condition · median

used (1) $8
unlisted (1) $53
Klixon 3 Amp Circuit Breaker (7274-4-3) Aircraft Parts & Salvage
Klixon 3 Amp Circuit Breaker (7274-4-3)
Removed from 1963 Cessna 172D S# 17250229
used
$7.50 view at supplier ↗

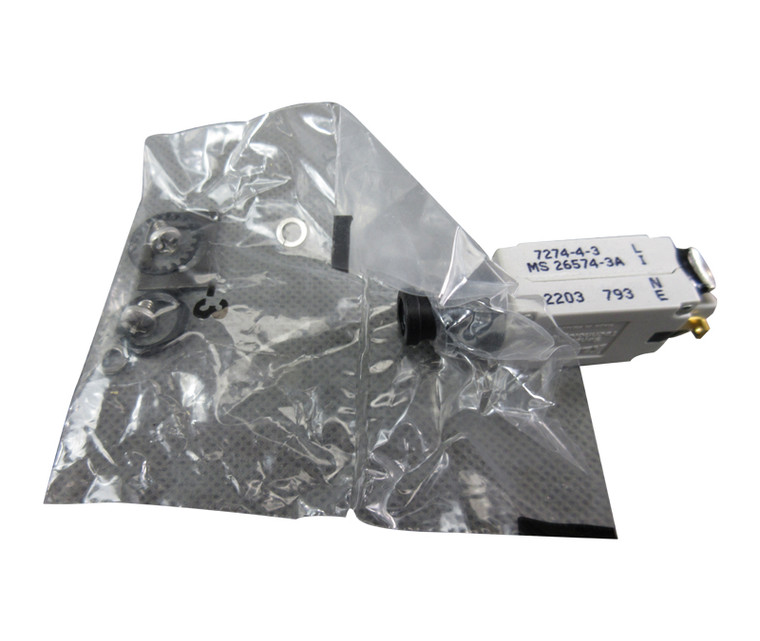

KLIXON® 7274-4-3 Circuit Breaker - 3 AMP SkyGeek
KLIXON® 7274-4-3 Circuit Breaker - 3 AMP
Approvals and Conformities NSN 5925-00-080-5286 MIL-SPEC# MIL-C-5809 Alternate PN#s MS26574-3A Product Attributes Country of…
$52.95 view at supplier ↗
