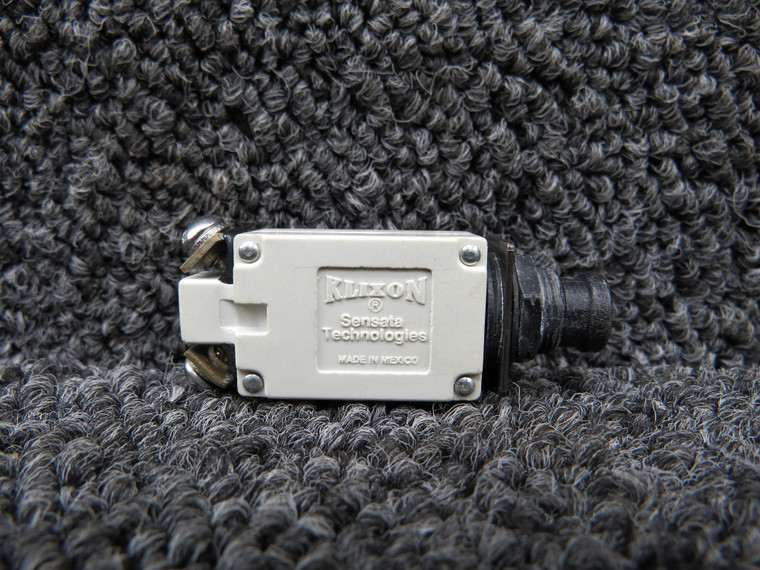

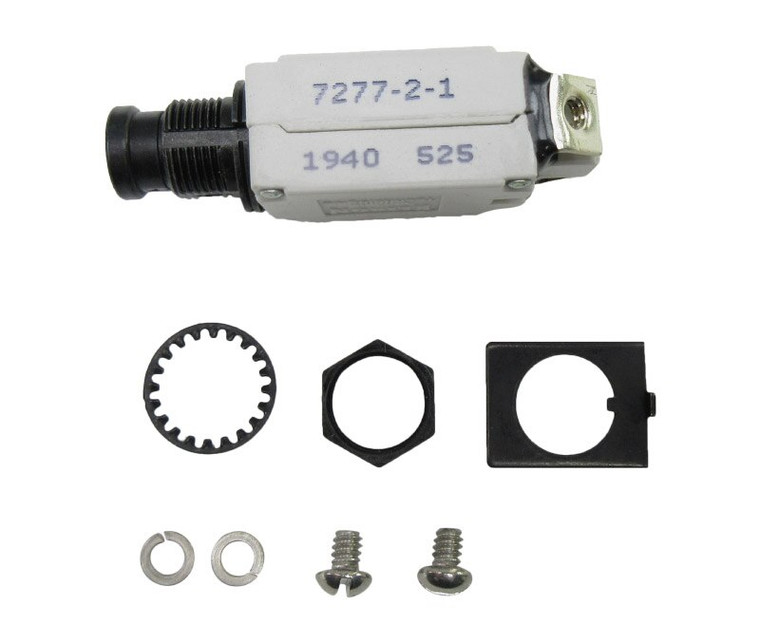

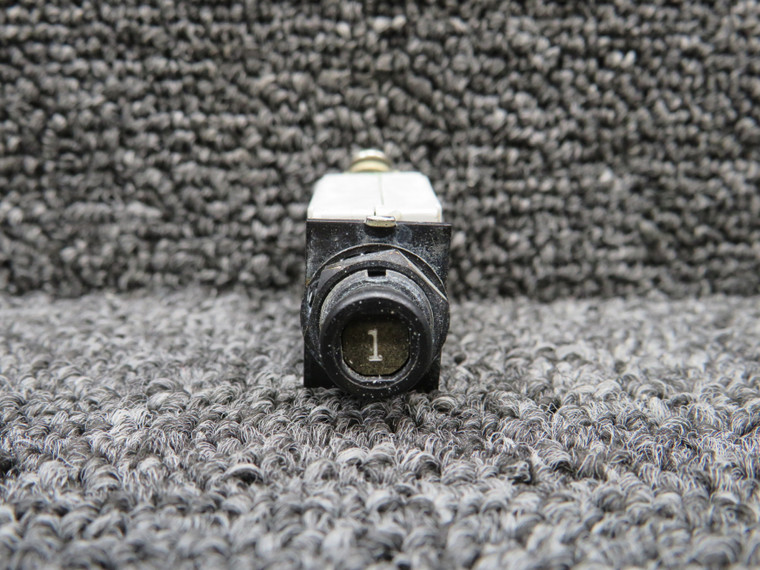

Part 7277-2-1

Description

Approvals and Conformities NSN 5925-00-929-7716 MIL-SPEC# MS26574-1 Alternate PN#s MS26574-1 Product Attributes Country of Origin United States Size 1 AMP Shipping Weight 0.05 pounds ECCN 9A991.d Manufacturer P/N 7277-2-1 Schedule B Code 8536.20.0040 Pack Quantity 1 Ship Dimensions 3 x 2 x 1 inches Body Style: Single Pole Type Bushing Length: 0.359 Inches Nominal Body Length: 0.780 Inches Maximum Body Width: 0.580 Inches Maximum Case Material: Metal Center To Center Distance Between Terminals Parallel To Length: 0.593 Inches Nominal Fragility Factor: Moderately Rugged Mounting Surface To Terminal End Distance: 1.420 Inches Maximum Pole Quantity: 1 Mounting Facility Type And Quantity: 1 Threaded Bushing W/Panel Seal Storage Type: General Purpose Warehouse Thread Quantity Per Inch: 32 Maximum Continuous Load Current Rating Per Pole: 1.0 Amperes Ac Single Location And 1.0 Amperes Dc Single Location Operating Voltage Type And Rating Per Pole In Volts: 115.0 Ac Single Location And 28.0 Dc Single Location Maximum Interrupting Capacity Current Type And Rating Per Pole In Amps: 100.0 Ac Single Location And 100.0 Dc Single Location Circuit Protection Type: Overcurrent Single Location Trip Release Method: Thermal Single Location Trip Release Characteristic: Time Delay Single Location Ultimate Trip Rating Of Continuous Current Rating Per Pole In Percent: 150.0 Single Location Reset Method: Manual Main Contact Tripping Mechanism Type: Trip

Price spread · 25 priced listings

Each dot is one listing (hover for supplier & condition); color = condition.

Price by condition · median
