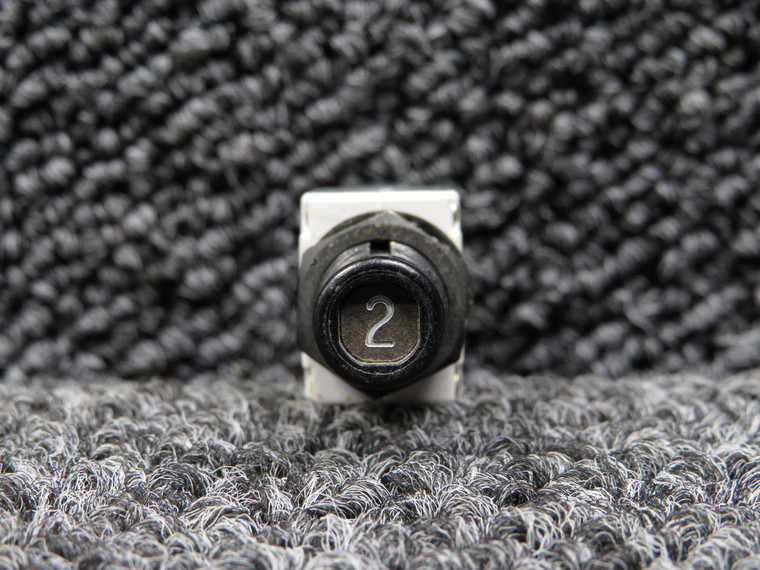

Part 7277-5-2

Cross references

Supplier data links this part number to: S2899L20

Description

Klixon 7277 series circuit breakers are meant for use in applications that do not require military approvals. The trip-free 7277 was originally developed as an alternative to slow blow fuses and is used extensively as primary electrical circuit protection on general aviation aircraft. The military grade version of this circuit breaker is the physically and electrically identical Klixon 7277, which has wider calibration limits. Includes hardware. Features This 7277 series circuit breaker is rated for 2 amps. Miniature size Light weight Trip free design Current ratings (0.5 to 20 amps) High vibration resistance Typical use: computers, construction, data processing and telecommunications equipment, flight simulators, general aviation aircraft, materials handling, industrial electronic equipment, trainers and simulators, where all breakers are operated on low ampere control current Specifications Weight: 28 grams, maximum Specification Current Rating: 2 Amps Vibration: 10G minimum, 50Hz – 500Hz (other vibration levels available) Mechanical Shock: 35G Acceleration: 10G Interrupt Current: 0.50–5 amps: unlimited at 28 VDC 7.50–15 amps: 2,000 amps at 28 VDC 0.50–1.50 amps: unlimited at 120 VAC, 400 Hz 2–5 amps: 800 amps at 120 VAC, 400 Hz 7.50–20 amps: 500 amps at 120 VAC, 400 Hz Endurance: 2,500 cycles: 120 VAC, 400 Hz inductive 5,000 cycles: 120 VAC, 400 Hz resistive 2,500 cycles: 30 VDC inductive 5,000 cycles: 30 VDC resistive 10,000 cycles: Mechanical, no load
