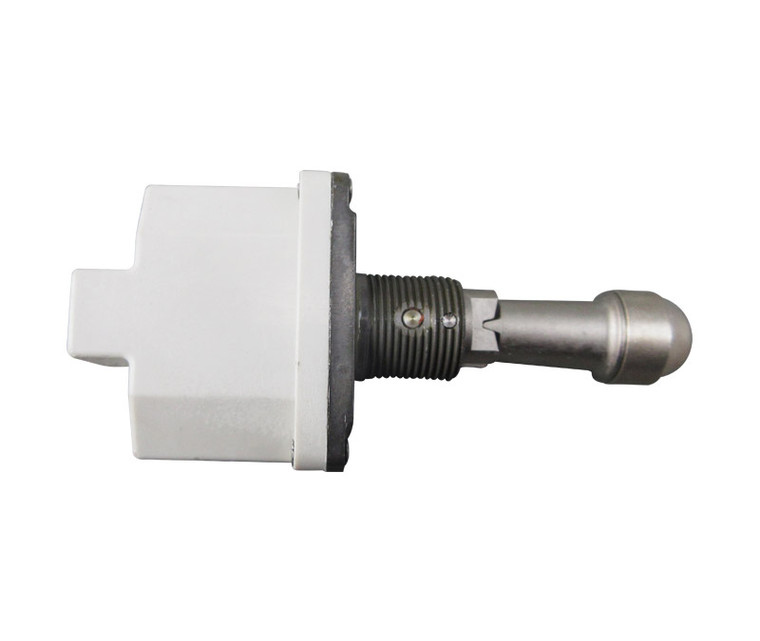

Part 8503K12

Cross references

Supplier data links this part number to: MS2465827E

Description

Approvals and Conformities NSN 5930-00-220-3427 MIL-SPEC# MS25126-F7 Alternate PN#s MS25126-F7 Product Attributes Country of Origin Mexico Shipping Weight 0.15 pounds ECCN 9A991.d Manufacturer P/N 8503K12 Schedule B Code 8536.50.9065 Pack Quantity 1 Body Style: Bushing Mount Hazardous Locations/Environmental Protection: Submersible Overall Length: 1.346 Inches Maximum Overall Height: 2.769 Inches Nominal Overall Width: 1.025 Inches Maximum Bushing Length: 0.437 Inches Nominal Body Length: 1.346 Inches Maximum Body Width: 0.861 Inches Maximum Actuator Style: Round Actuator Diameter: 0.430 Inches Maximum Actuator Height: 1.082 Inches Nominal Actuator Position-Action Relationship: Up Position Momentary And Down Position Momentary And Center Position Maintained Actuator Position-Locking Relationship: Up Position No Locking Action And Down Position No Locking Action And Center Position Locked In Maximum Voltage Rating In Volts: 115.0 Ac And 28.0 Dc Mounting Surface To Terminal End Distance: 1.250 Inches Maximum Inclosure Type: Fully Inclosed Features Provided: Actuator Seal Thread Quantity Per Inch: 32 Nominal Thread Size: 0.469 Inches Nonpile-Up Contact Arrangement: 2 Pole, Double Throw, Two Positions Momentary Single Switch Unit Contact Load Current Rating At Maximum Rated Voltage: 18.000 Amperes Resistive Dc And 10.000 Amperes Inductive Dc And 5.000 Amperes Lamp Dc And 11.000 Amperes Resistive Ac And 8.000 Amperes Inductive Ac And 2.000 A

Price spread · 2 priced listings

Each dot is one listing (hover for supplier & condition); color = condition.

Price by condition · median
