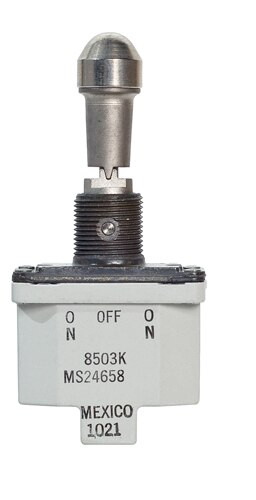

Part 8503K33
1 listing from 1 supplier (SkyGeek) · $678.75. Prices refresh weekly.
Description
Approvals and Conformities Alternate PN#s MS24658-21M Product Attributes Country of Origin Mexico Shipping Weight 3 pounds Color Family White Manufacturer P/N 8503K33 Pack Quantity 15 Color White 1 pole toggle switch; On - Off - On Molded-in terminal inserts and terminal numbersEnvironmentally sealed per MIL-S-3950MS approved and QPL'd per MIL-S-3950Thermoset molding materials meet flame retardant requirementsBushing: 15/32" - 32 threadTemperature Range: -85°F to +160°F (-65°C to +71°C)Life: 20,000 operations at rated load 40,000 operations mechanical life Actuator Type: Lever Contact Form: SPST Lamp load: @ 28VDC 5 amp DC @ 115VAC 3 amp AC Resistve load: @ 28VDC 20 amp DC @ 115VAC 15 amp AC Inductive load: @ 28VDC 15 amp DC @ 115VAC 10 amp AC Mounting Hole Size: 0.48 " Mounting Type: Panel Number of Poles: 1 Standards: UL Recognized, CaseA Certified Temperature, Operating, Maximum: 71 °C Temperature, Operating, Minimum: -65 °C Termination: Screw Type: Toggle Voltage, Rating: 115/28 VAC/VDC
