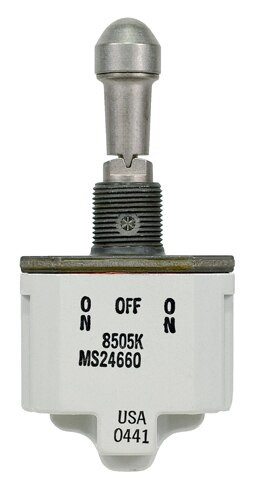

Part 8505K10
1 listing from 1 supplier (SkyGeek) · $107.99. Prices refresh weekly.
Description
Approvals and Conformities MIL-SPEC# MS24660-22D Product Attributes Country of Origin Mexico Shipping Weight 0.05 pounds ECCN 9A991.d Manufacturer P/N 8505K10 Schedule B Code 8710.00.0090 Pack Quantity 1 Safran Labinal 8505K10 4-Pole Lever Lock Switch - On - None - Off Actuator Type: Lever Contact Form: SPST Lamp load: @ 28VDC 5 amp DC @ 115VAC 3 amp AC Resistve load: @ 28VDC 20 amp DC @ 115VAC 15 amp AC Inductive load: @ 28VDC 15 amp DC @ 115VAC 10 amp AC Mounting Hole Size: 0.48 " Mounting Type: Panel Number of Poles: 4 Standards: UL Recognized, CaseA Certified Temperature, Operating, Maximum: 71 °C Temperature, Operating, Minimum: -65 °C Termination: Screw Type: Toggle Voltage, Rating: 115/28 VAC/VDC
