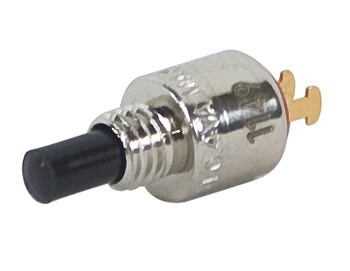

Part 8631ZBD2
2 listings from 2 suppliers (CostAero, SkyGeek) · $14.29 – $19.83. Prices refresh weekly.
Description
The 8600 series micro-miniature pushbutton switches are compact and ideal in applications with limited space. Common applications include networking, detection, and telecommunications equipment. The 8600 series switches are available in closed models with optional overtravel. Features This push button switch (EDMO# 8631ZBD2): Single pole / single throw (SPST off-mom.) Solder Terminals Gold contact material No epoxy seal Plunger color: black Features: Available with over-travel Normally closed models available Microminiature size ideal where space is limited Typical applications: detection, telecommunications & networking equipment, computers & peripherals RoHS compliant Specifications Contact Rating: Q contact material (8631, 8632 Models): 500 mA @ 120 V AC or 28 V DC; 250 mA @ 250 V AC; Electrical Life: 8631 and 8633 MODELS: 250,000 actuations at full load Contact Resistance: Below 30 mΩ typical initial @ 2 — 4 V DC, 100 mA, for both silver and gold plated contacts Insulation Resistance: 109Ω, minimum Dielectric Strength: 500 VRMS, minimum @ sea level Operating Temperature: -30°C to 65°C Solderability: Per MIL-STD-202F method 208D, or EIA RS-186E method 9 Case Materials: Glass filled phenolic or diallyl phthalate (DAP), (UL94V-0) Plunger Material: Glass filled nylon (UL94V-0) Brushing Material: Nickel-plated brass Contact Material: silver-plated, coin silver (Q contact material) Terminal Material: silver-plated, copper alloy (8631
Price spread · 2 priced listings
Each dot is one listing (hover for supplier & condition); color = condition.
CostAero
SkyGeek
