Part A-30.5

Description

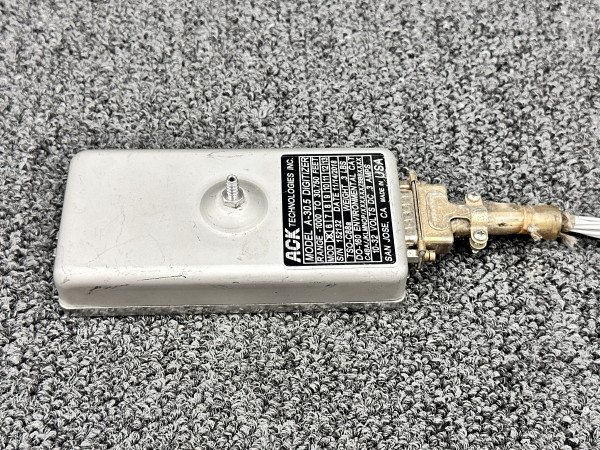

The model A-30 digitizer is designed to work with all modern mode A/C and mode S transponders. In mod 4 through mod 7 configurations, the digitizer reports to 30,750 feet and provides parallel grey code output. The mod 5 and mod 9 configurations are plug compatible with all earlier mod 1 through 4, and mod 8 digitizers with serial numbers 2,400 through 120,499. This digitizer includes a quick release mounting tray, 4 foot harness, 4 foot static line, installation manual. Features Provides gray code to 30,750 ft Plug compatible with earlier models Drop-in replacement for most model A-30 encoders FAA–TSO C-88a Specifications Weight: 5.1 oz (144 g) Dimensions (L x W x H): 6 x 2.65 x 1.3 in Range (mod 5): 950 to 30,750 ft Accuracy: ± 20 ft, typical ±50 ft, maximum Operating Current: 160 mA, typical Warm-up Current Draw: 14 VDC 160 mA 28 VDC 220 mA Warm-up Time: 70°F ambient 60 seconds (0°C ambient 210 seconds) Operating Voltage: 10 VDC to 32 VDC Operating Temperature: -4°F to 131°F (-20°C to 55°C) Altitude Resolution: grey code (parallel) output 100 ft Approvals: FAA TSO C-88a German LBA 10.221/4
