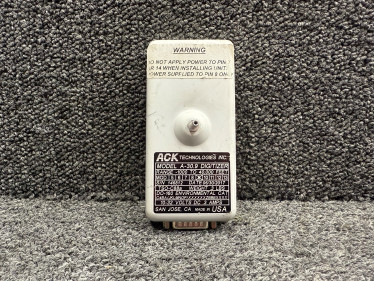

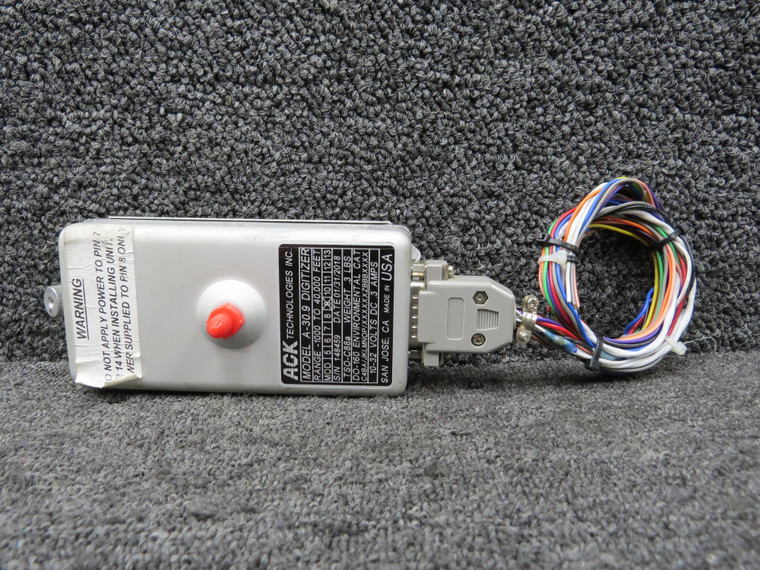

Part A-30.9

Description

The A-30 encoders work with all modern mode A/C and mode S transponders. The mod 9 configuration reports to 42,000 feet and provides both parallel grey codes and two RS 232 outputs which are jumper selectable in the most popular formats. The RS 232 altitude reporting is jumper selectable in 10 or 100 foot increments. It is plug compatible with all earlier mod 1 through 4, and mod 8 encoders with serial numbers 2,400 through 120,499. This altitiude encoder (mod 9) kit includes a quick release mounting tray, 4 color coded foot harness with prewired jack, static line fittings, installation manual. Features Provides ADS-B RS 232 attitude data (2) RS 232 outputs 10 ft resolution Gray code to 42,000 ft Specifications Weight:  5.1 oz (144 grams) Dimensions:  6 x 2.65 x 1.3 in Range:  MOD 5: –950 to 30,750 ft MOD 9: –950 to 42,000 ft Accuracy:  ±20 ft, typical ±50 ft, maximum Operating Voltage:  10 VDC to 32 VDC Operating Current:  160 mA, typical Operating Temp: -4°F to 131°F (-20°C to 55°C) Warm-up Current Draw: 14 VDC @ 160 mA 28 VDC @ 220 mA Warm-up Time:  70°F ambient 60 seconds 0°F ambient 210 seconds RS 232 10 ft or 100 ft Altitude Resolution:  Gray code (parallel) output 100 ft Approvals:  FAA TSO C-88a German LBA 10.221/4
