Part AN23-11

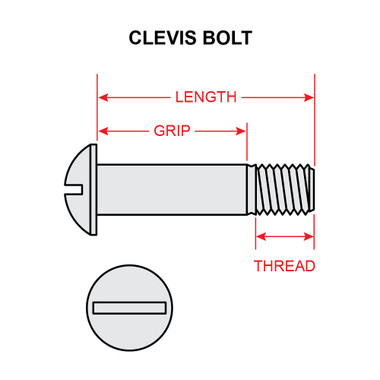

Name: AN23-11A CLEVIS BOLT - 10-32 X 23/32 INCH
SKU: AN23-11

4 listings from 2 suppliers (SkyGeek, Univair) · $1.26 – $3.93. Prices refresh weekly.

unlisted (4)from $1

Description

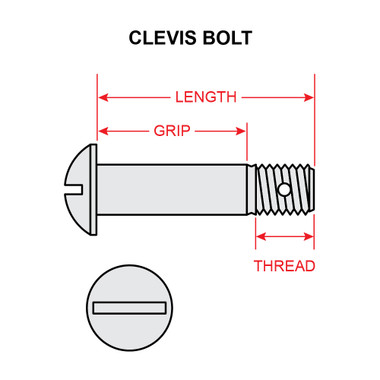

Approvals and Conformities NSN 5310-00-530-3515 MIL-SPEC# AN23 Alternate PN#s 400 673 Product Attributes Country of Origin United States Shipping Weight 0.01 pounds ECCN EAR99 Color Family Gold Manufacturer P/N AN23-11 Schedule B Code 7318.15.2000 Pack Quantity 1 Series AN23 Length 23/32 Grip 3/8 Shank Drilled Head Undrilled Color Gold Material Cadmium Steel Air Force-Navy AN23s are clevis bolts made of steel with drilled shanks and a cadmium surface treatment. More specs can be found below. Material: Steel (Compositions 8740, 8630, 8735, 4140, 4130, 4037) Material Document and Classification: MIL-S-6049, MIL-S-6050, MIL-S-6098, MIL-S-5626, MIL-S-6758, MIL-S-8695 Surface Treatment: Cadmium and chromate Surface Treatment Document and Classification: QQ-P-416, Type 2, Class 3 Thread Series Designator: UNF Nominal Thread Diameter (inches): .190 Thread Quantity (per inch): 32 Thread Class: 3A Thread Direction: Right-hand Thread Length Range (inches): .324 to .364 Fastener Length Range (inches): .709 to .729 Head Style: B30 button Head Diameter Range (inches): .365 to .385 Head Height Range (inches): .083 to .103 Distance From Head Largest Bearing Surface to Shank Hole Center (inches): .136 to .146 Internal Drive Style: D14 Slot Nominal Groove Diameter (inches): .141 Shank Unthreaded Hole Diameter Range (inches): .070 to .080 Minimum Tensile Strength (lbs/square inch): 125000 Single Shear Strength(lbs/square
