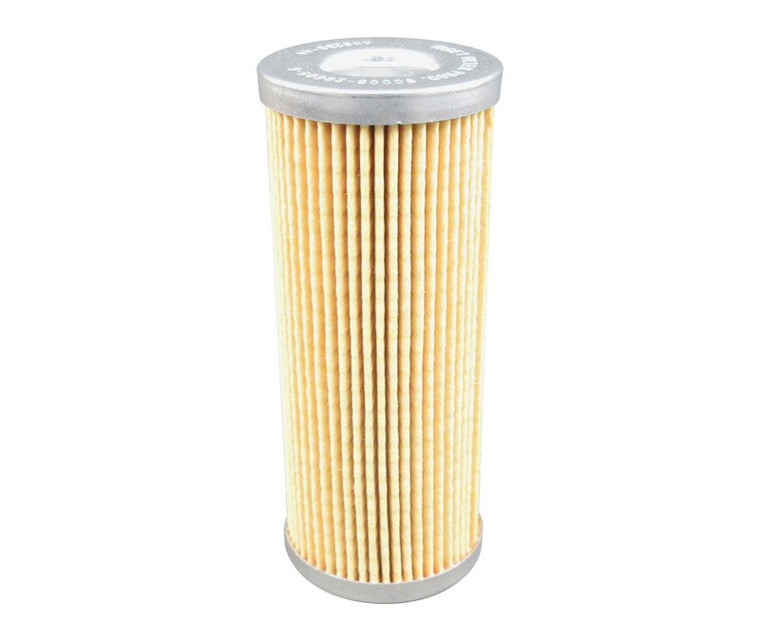

Part AN6235-4A
1 listing from 1 supplier (SkyGeek) · $37.38. Prices refresh weekly.
Description
Approvals and Conformities NSN 4330-00-277-3274 MIL-SPEC# MIL-F-5504B Alternate PN#s 572759, 038082, 28605-G, 30024-6 Product Attributes Country of Origin United States Shipping Weight 0.15 pounds ECCN 9A991.d Manufacturer P/N AN6235-4A Schedule B Code 8421.23.0000 Pack Quantity 1 Ship Dimensions 6 x 2 x 2 inches The AN6235-4A is part of the AN6235 series of line filter elements. This series conforms to the following specification: MIL-F-5504. Also, these filters are qualified for use in MS28720 and AN6234 filter assemblies. Please see below for more information. Operating Temperature Range: -65°F to 275°F Minimum Element Collapse: 150 psid Filtration: 10 micrometers Hydraulic O-ring Media: Micropleat elements (resin impregnated cellulose) ∗A: 4.500"/4.438" ∗C: 1.781"/1.735" ∗D: 1.000"/.997" ∗Refer to the diagram above
