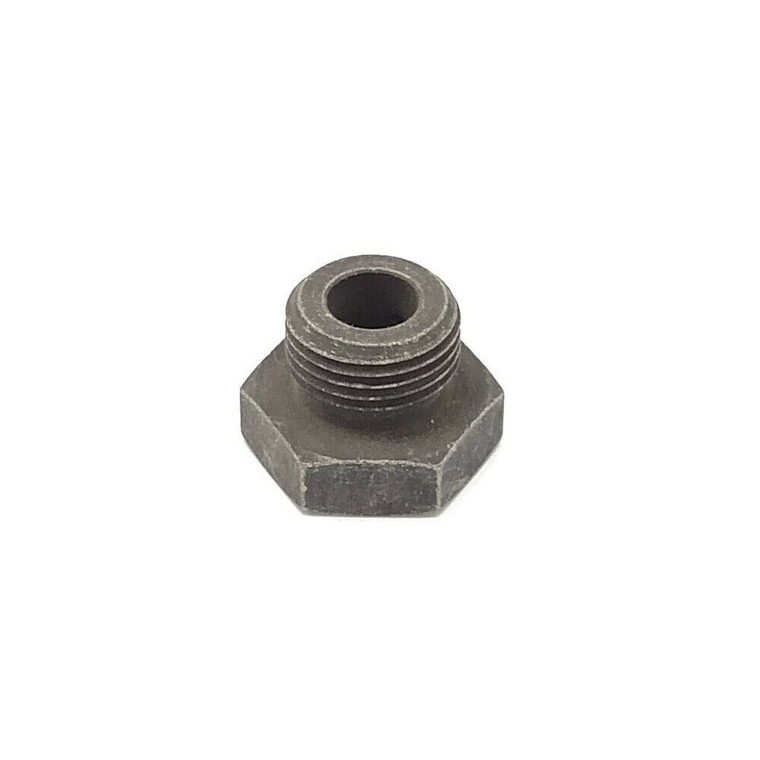

Part AS5169J03L
1 listing from 1 supplier (SkyGeek) · $27.83. Prices refresh weekly.
Description
Approvals and Conformities NSN 5365-00-585-2542 Product Attributes Country of Origin United States Shipping Weight 0.04 pounds ECCN EAR99 Manufacturer P/N AS5169J03L Schedule B Code 8803.30.0060 Pack Quantity 1 AS5169 Series Thread Class: 3A External Thread Direction: Right-Hand External Thread Length: 0.250 Inches Minimum And 0.265 Inches Maximum External Head Height: 0.234 Inches Nominal Overall Length: 0.562 Inches Nominal Connection Style: Plain Body Core Diameter: 0.125 Inches Nominal Core Depth: 0.250 Inches Minimum And 0.266 Inches Maximum Bleeder Hole Center To Threaded End Distance: 0.125 Inches Minimum And 0.187 Inches Maximum Bleeder Hole Diameter: 0.062 Inches Nominal Nominal Thread Size: 0.375 Inches External Material: Steel Comp 304 Overall Material Document And Classification: Qq-S-766 Fed Spec Single Material Response Overall Surface Treatment: Passivate Overall Surface Treatment Document And Classification: Qq-P-35 Fed Spec Single Treatment Response Overall Style Designator: Plug, Machine W/Bleeder Holes Thread Series Designator: Unf External
