Part CI1115
2 listings from 2 suppliers (BAS Part Sales, SkyGeek) · $150.00 – $418.88. Prices refresh weekly.
Description

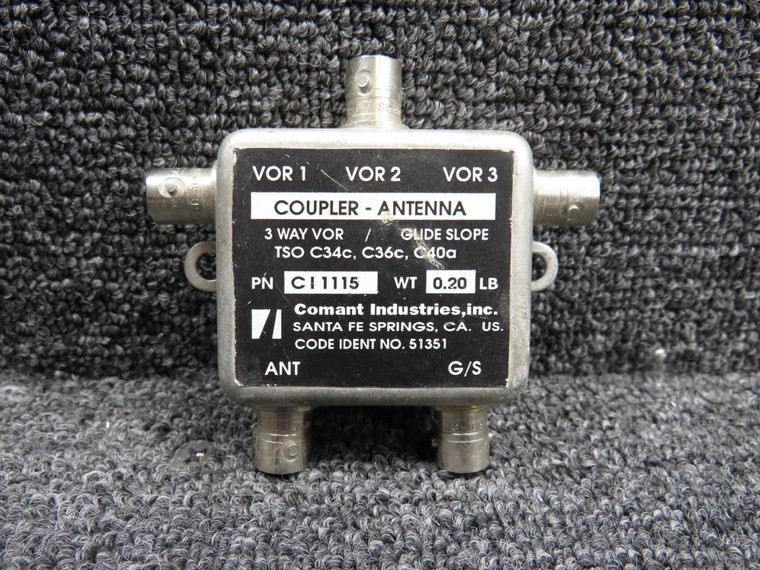

Approvals and Conformities Product Attributes Country of Origin United States Shipping Weight 0.3 pounds ECCN 7A994 Manufacturer P/N CI1115 Schedule B Code 9803.20.0000 Pack Quantity 1 Triple VOR coupler/single glide slope diplexer allows operation between three VOR receivers and one glide slope receiver from the same VOR/glide slope antenna. MODEL CI 1115 Diplexer VOR/GS / Three Way Electrical Frequency 108 - 118 and 329 - 335 MHz VSWR 1.5:1 Maximum Insertion Loss 0.5 dB Maximum Isolation 20 dB Minimum Impedance RF 50 Ohms Mechanical Weight 0.25 lb. Maximum Height 0.80 in. Maximum Material Aluminum Finish Aluminum Connector BNC (Female) Environmental Internal Mount Federal Specifications FAA TSO C34c, C36c, C40a ORDER OPTIONS Connector BNC Standard
Price spread · 2 priced listings
Each dot is one listing (hover for supplier & condition); color = condition.
