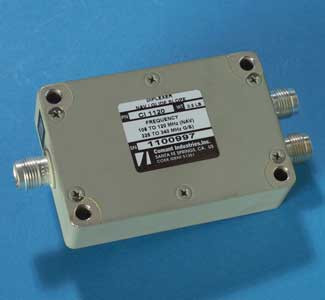

Part CI1120
1 listing from 1 supplier (SkyGeek) · $1,307.10. Prices refresh weekly.
Description
Approvals and Conformities Product Attributes Country of Origin United States Shipping Weight 0.4 pounds ECCN 7A994 Manufacturer P/N CI1120 Schedule B Code 9803.20.0000 Pack Quantity 1 Provides operation between a single VOR receiver and a single glide slope receiver from the same OR/glide slope antenna. Offers polarized VOR and GS output connectors. For military applications. MODEL CI 1120 Diplexer / Single VOR / Single GS Electrical Frequency 108 - 120 and 325 - 340 MHz VSWR 1.5:1 Maximum Insertion Loss 0.5 dB Maximum Isolation 40 dB Minimum Impedance RF 50 Ohms Mechanical Weight 0.44 lb. Maximum Height 0.812 in. Maximum Material Die Cast Aluminum Finish Flat Grey Epoxy Paint Connector TNC (Female) Environmental Internal Mount Federal Specifications MIL Standards MIL-E-5400 MIL-STD-810B (Vibration) MIL-B-5087 MIL-C-39012 (Connector) ORDER OPTIONS Connector TNC Standard Color Flat Grey Standard
