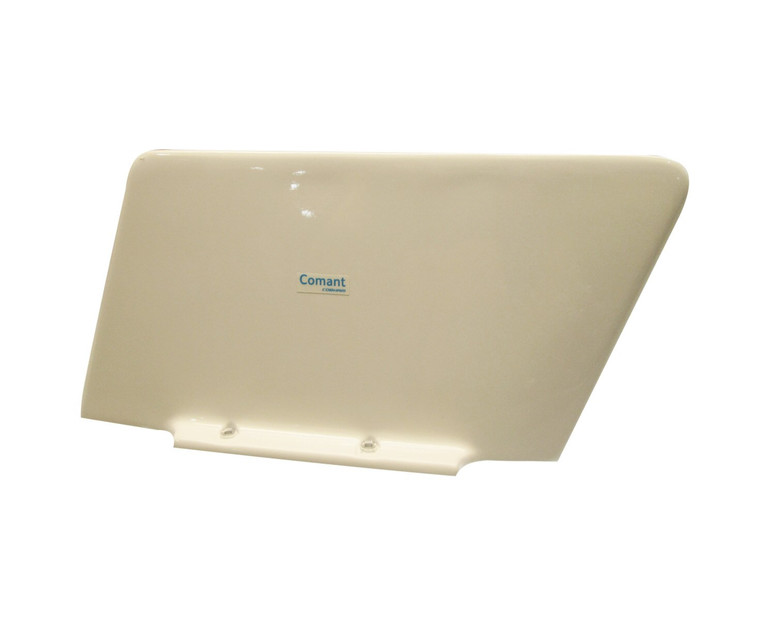

Part CI-120-1

Price trend · weekly low by condition

Description

Approvals and Conformities Product Attributes Country of Origin United States Shipping Weight 1 pounds ECCN 7A994 Manufacturer P/N CI-120-1 Schedule B Code 9803.20.0000 Pack Quantity 1 VOR/GS navigation antenna set provides optimum VOR performance when used for area navigation. Antenna system qualified for use on single, twin, jet and helicopter aircraft. Also provides glide slope reception capability. With single BNC connector output, two coax interconnect cables and a signal combiner with single BNC connector output providing for a single cable run to the avionics installation. Electrical Frequency 108 - 118 MHz (VOR / LOC) 329 - 335 MHz (Glide Slope) VSWR 6.0:1 108 - 118 MHz (VOR/LOC) 5.0:1 329 - 335 MHz (Glide Slope) Polarization Horizontal Radiation Pattern Omnidirectional Impedance 50 Ohms Nominal Power Receive only Mechanical Weight 1.4 lb. Height 6.0 in. Maximum Material Molded Radome Finish Polyurethane Enamel Connector BNC / Single output combiner Environmental Temperature -55ºC to +85ºC Altitude 50,000 ft. Air Speed 600 Knots TAS @ 25,000 ft. Federal Specifications RTCA Environmental DO-160D Environmental Category [(F2)X]ACE[(T)E1P]XRXXXSXXXXXXXXXCX FAA TSO C34e, C36e, C40c RTCA MOPS DO-192, DO-195, DO-196
