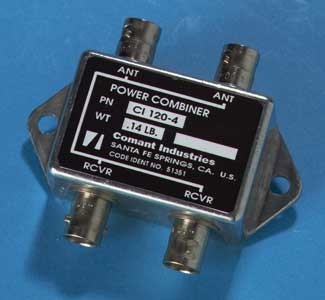

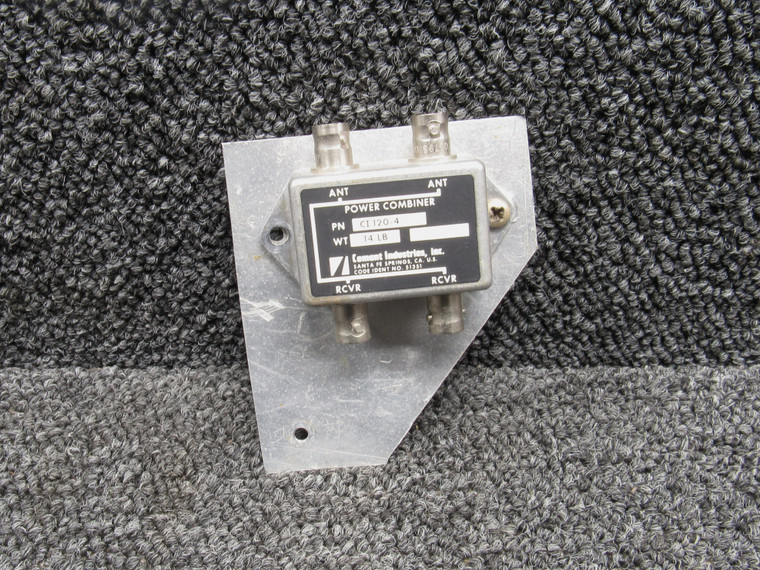

Part CI120-4

Description

Approvals and Conformities Product Attributes Country of Origin United States Shipping Weight 1 pounds ECCN 7A994 Manufacturer P/N CI120-4 Schedule B Code 9803.20.0000 Pack Quantity 1 Two input - two output Power Combiner is standard equipment with Comant's CI 120-200G/S and CI 135-200. A typical CI 120-200G/S set up is depicted in the inset of this page. For either antenna system, the CI 120-4 provides for two separate cable runs to the avionics installation for NAV 1 and NAV 2 receivers. MODEL CI 120-4 Power Combiner VOR/GS Electrical Frequency 108 - 118 and 329 - 335 MHz Power Split 6 dB VSWR 1.5:1 Maximum Insertion Loss 1.5 dB Maximum Isolation 20 dB Minimum Amplitude Balance ± 0.5 dB Impedance RF 50 Ohms Nominal Phase 180° ±5° Between Antenna Ports 0° ±5° Between Antenna Ports Mechanical Weight 0.1 lb. Maximum Height 0.97 in. Maximum Material Die Cast Aluminum Finish Aluminum Connector BNC (Female) Environmental Internal Mount Federal Specifications RTCA Environmental DO-160C Environmental Category [A2F2]-AC[CLMY]XRXXXSXXXXXXXC FAA TSO C34c, C36c, C40a RTCA MOPS DO-192, DO-195, DO-196 ORDER OPTIONS Connector BNC Standard
