Part CI-138

Description

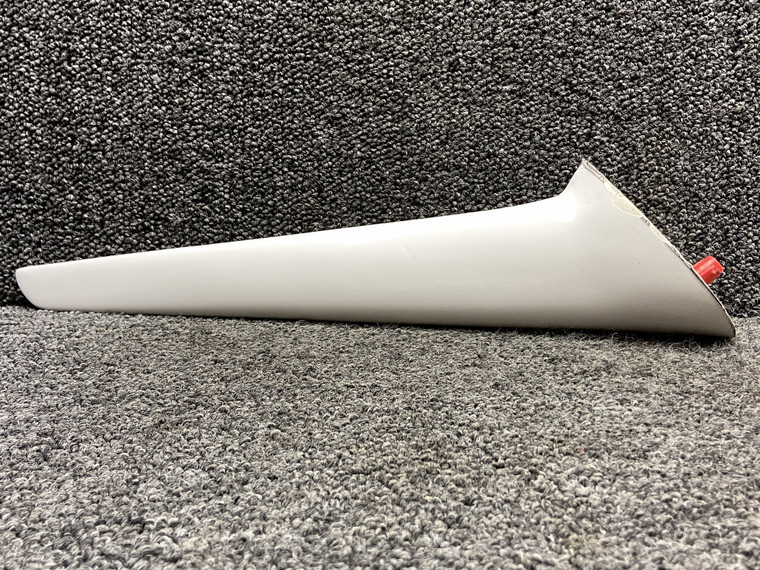

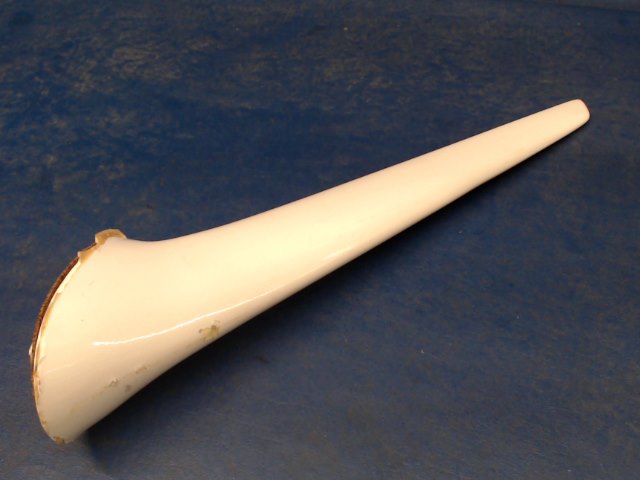

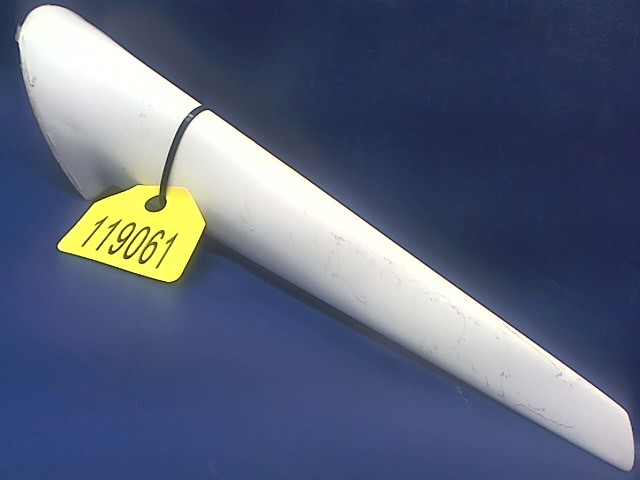

Approvals and Conformities Product Attributes Country of Origin United States Shipping Weight 1.82 pounds ECCN 7A994 Manufacturer P/N CI138 Schedule B Code 9803.20.0000 Pack Quantity 1 Identical to the CI 119 with the exception of the mounting hole pattern and RF connector location which are compatible with Beechcraft mounting. RF connector is offset from the centerline of the antenna. The CI 138 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO-186A MOPS. MODEL CI 138 VHF Blade Antenna Electrical Frequency 118 - 137 MHz VSWR 2.5:1 Maximum Polarization Vertical Radiation Pattern Omnidirectional Impedance 50 Ohms Power 25 Watts Mechanical Weight 1.0 lbs. Maximum Height 13.00 in. Maximum Material Valox 420 Finish Polyurethane Enamel Connector BNC (female) Environmental Temperature -55ºC to +85ºC Altitude 50,000 ft. Air Speed 350 Knots TAS @ 25,000 ft. Federal Specifications RTCA Environmental DO-160D Environmental Category [D2X]ACB[R(C,C1)U(F,F1) XWFDXSXXXXX[XX]X[XXXX]XAX FAA TSO C37d, C38d RTCA MOPS DO-186A ORDER OPTIONS Connector BNC Standard Color White Standard Gasket C13804 Cork Neoprene - Standard
