Part CI211-16
2 listings from 2 suppliers (CostAero, SkyGeek) · $1,706.97 – $1,712.26. Prices refresh weekly.
Description

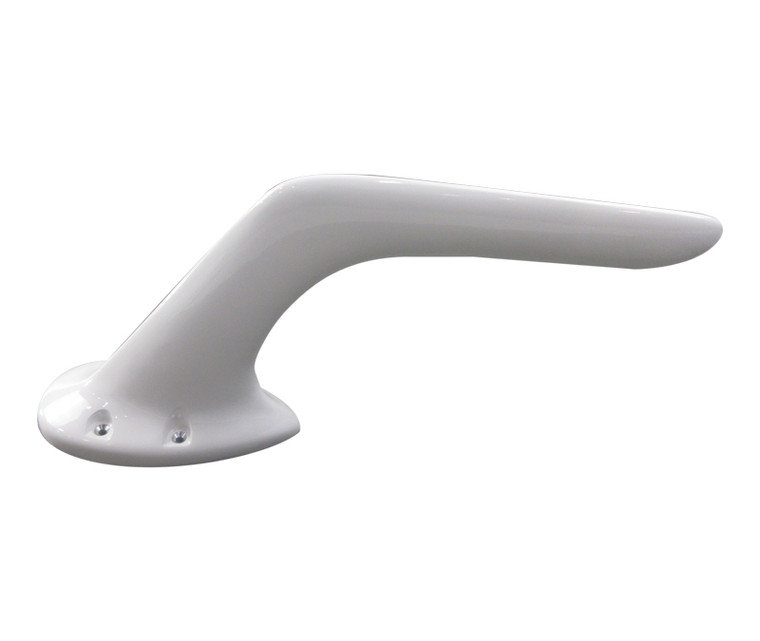

Approvals and Conformities Product Attributes Country of Origin United States Shipping Weight 1 pounds ECCN 7A994 Manufacturer P/N CI211-16 Schedule B Code 9803.20.0000 Pack Quantity 1 Intended for installation on long-range executive jet and turbo-prop aircraft capable of operating in Europe, Asia and South America where VHF communication is available over a much wider band. Only 8.25" high, yet provides good performance without the added drag of taller blade communication antennas. The CI 211-16 is identical to the CI 211-1 except it also includes one internal mounting hole forward and one internal mounting hole aft on the antenna centerline as shown in outline drawing. The CI 211-16 has been re-tested andupgraded to the new RTCA DO-160D environmental requirements. MODEL CI 211-16 VHF Blade Antenna Electrical Frequency 118 - 153 MHz VSWR 2.75:1 Maximum Polarization Vertical Radiation Pattern Omnidirectional Impedance 50 Ohms Power 30 Watts C.W. Mechanical Weight 1.6 lbs. Maximum Height 8.25 in. Maximum Material High Density Polyurethane Finish Polyurethane Enamel Connector BNC (female) Environmental Temperature -55ºC to +85ºC Altitude 50,000 ft. Air Speed 573 Knots TAS or 0.88 Mach at 45,000 ft. Federal Specifications RTCA Environmental DO-160D Environmental Category [D2X]ACB[R(C,C1)U(F,F1)] XWFDXSXXXXX[XX]X[XXXX]XAX FAA TSO C37d, C38d RTCA MOPS DO-186A ORDER OPTIONS Connector BNC Standard Color White Standard Gasket C21104 Cork Neoprene
