Part CI401-460

Description

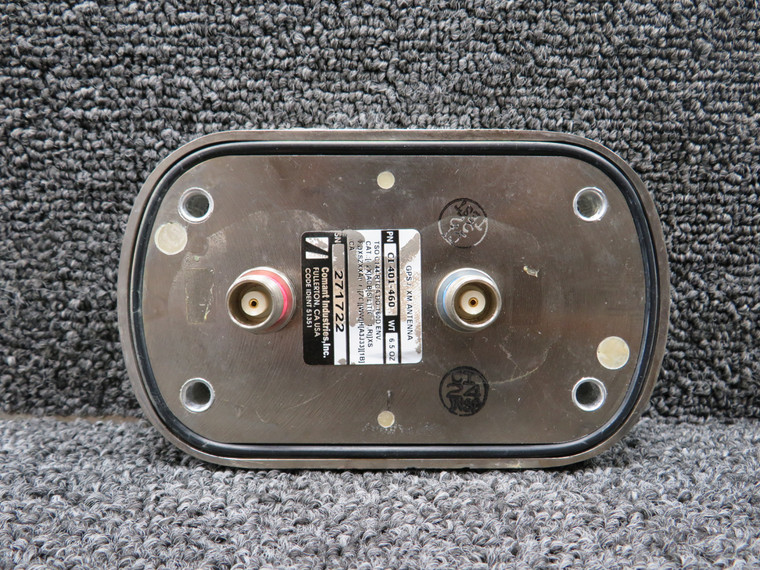

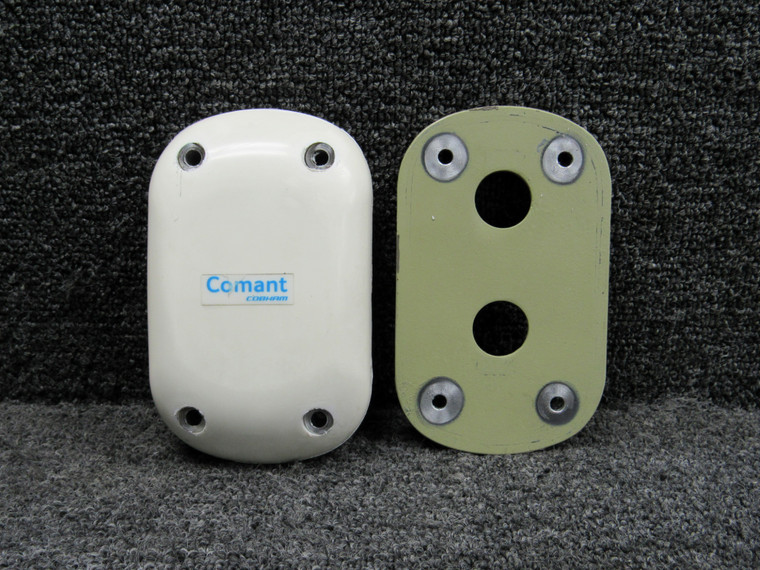

Approvals and Conformities Product Attributes Country of Origin United States Shipping Weight 0.5 pounds ECCN 7A994 Manufacturer P/N CI401-460 Schedule B Code 9803.20.0000 Pack Quantity 1 The CI 401-460 replaces the CI 401-420.The CI-401-460 is set apart from other antennas because, in addition to GPS, the antenna provides popular Satellite Radio and Weather Data signal capability. Now installers can quickly place this TSO'd antenna on limited space areas. What's more, installers can provide satellite entertainment and/or weather data systems for their customers without adding another antenna.Frequencies - GPS 1575.42 MHz / 26.5 dB Gain XM 2332.5-2345.0 /26-30 dB GainComDat® multifunction GPS and XM Weather antenna. Designed for compatibility with panel mount 26.5 dB gain GPS receivers.Add XM to an existing GPS antenna location without the need for a completely new installation location.Conforms to the popular ARINC footprint, standard on many twin turbocraft and business jets.Certified FAA TSO C144 for GPS and GPS WAAS Class Gamma 1 equipment. Not compliant for GPS WAAS Class Gamma 2 and 3 applications.Not compatible with most portable receiver systems. MODEL CI 401-460 Combination GPS Preamplifier Characteristics Frequency 1575.42 MHz VSWR 1.5:1 Maximum Polarization RHCP Radiation Pattern Hemispherical Impedance 50 Ohms Gain at 1575.42 MHZ 26.5 - 31.5 dB DC Voltage 4 - 24 Volts DC Current Min/Max 25 mA Min. / 40 mA Max Noise Figure 3.8 dB Selecti
