Part CI420-221
2 listings from 2 suppliers (CostAero, SkyGeek) · $552.29 – $568.01. Prices refresh weekly.
Description

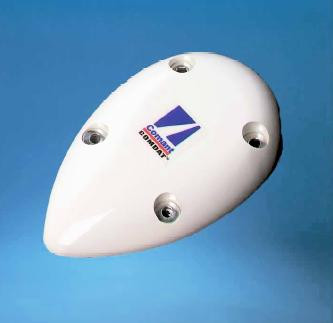

Approvals and Conformities Product Attributes Country of Origin United States Shipping Weight 1.25 pounds ECCN 7A994 Manufacturer P/N CI420-221 Schedule B Code 9803.20.0000 Pack Quantity 1 The CI 420-221 provides GPS for 17dB Garmin™ systems in the popular "teardrop" shape. Patented design offers GPS performance for Garmin™ 430, 530 and G1000 systems with 17dB gain requirement. All-new construction and design offers the latest in GPS antenna and amplifier technology. This antenna has been tested under the most rigorous conditions as outlined by RTCA DO-160D. Matches footprint of Garmin™ s GA56 and Comant?s CI 405 Series, which this design replaces. font color="#FFFFFF" face="Verdana" size="2">MODEL CI 420-221 ComDat GPS PS Passive CharacteristicsFrequency1575.42 MHz VSWR 1.5:1 MaximumPolarizationRHCP Radiation PatternHemisphericalImpedance50 Ohms Output (Nominal) Gain @ 1575.42 MHz17.5 +/- 3dB MaximumDC Voltage4 to 24 VDC DC Current20mA Maximum Noise Figure3.8dB Maximum Selectivity -35dB Minimum SATCOM 1626.5Burnout Protection30dBm / 1.0 CW Unmodulated echanical / EnvironmentalSpeed / Altitude330 KIAS Maximum @ Sea Level Weight 4.2 Oz. MaximumRTCA EnvironmentalDO-160D Environmental Cat.F2XACBS(L)U(F,F1)T(C,C1,R)XRF DXSXXXXXXXXXXXX1BCA FAA TSOC144 RTCA MOPSDO-228 ORDER OPTIONSnbsp; onnectorGPS PortTNC olorColorWhite
