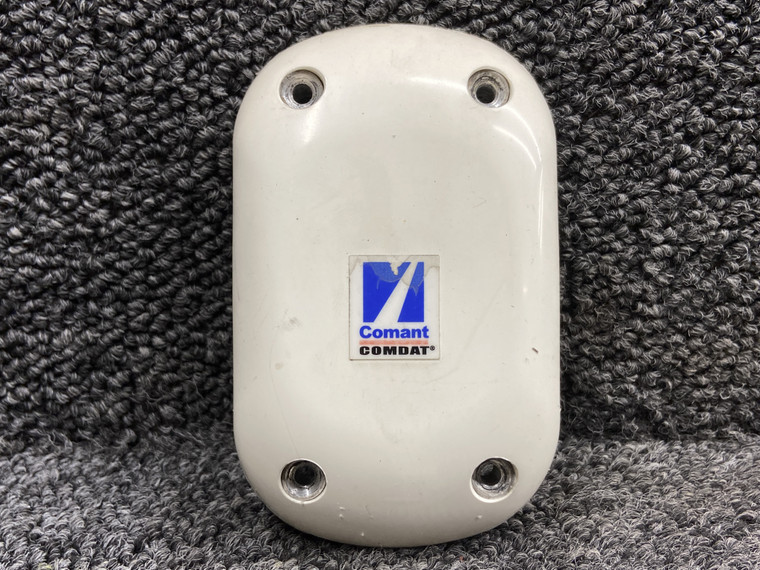

Part CI-428-410

Description

Approvals and Conformities Product Attributes Country of Origin United States Shipping Weight 0.5 pounds ECCN 7A994 Manufacturer P/N CI-428-410 Schedule B Code 9803.20.0000 Pack Quantity 1 Frequencies - GPS 1575.42 MHz / 26.5 dB Gain XM 2332.5-2345.0 /25 dB GainComant's newest ComDat GPS WAAS/XM antenna designed specifically to meet the GPS WAASGamma 3 specificatons required by the Garmin G1000 system.Enables primary navigation using GPS WAAS, including terminal navigation and approach to landing.XM Weather antenna is designed for low gain systems such as the Garmin GDL-69/69A or Heads Up systems with shorter coax runs.Conforms to the popular ARINC footprint, standard on many twin turbocraft and business jets.Not compatible with most portable GPS receiver systems. MODEL - CI 428-410GPS Preamplifier CharacteristicsFrequency 1575.42 MHz +/- 3 MhzVSWR 1.5:1 MaximumPolarization RHCPRadiation Pattern HemisphericalImpedance 50 OhmsGain @ 1575.42 MHz 26.5-30.1 dBDC Voltage 4-24 VoltsDC Current Min/Max 40mA Min. / 60mA Max.Noise Figure 2.5 dBSelectivity -35 dB Min @ Satcom FrequencyXM Weather Data SpecificationFrequency 2332.5-2345.0 MHzVSWR 1.5:1 MaximumPolarization LHCPRadiation Pattern HemisphericalImpedance 50 OhmsGain 25 +/-2 dBDC Voltage 3.6 - 24 VoltsDC Current Min/Max 35mA - 55 mANoise Figure 2.7 dB MaximumMechanical / EnvironmentalWeight 6.5 OuncesRTCA Env. / TSO DO-160D / TSO 144Connector GPS - TNC Blue / XM - TNC Red
