Part CI-429-200 Avionics
2 listings from 2 suppliers (CostAero, SkyGeek) · $864.08 – $905.52. Prices refresh weekly.
Description

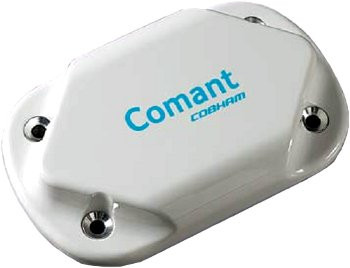

Approvals and Conformities Product Attributes Country of Origin United States Shipping Weight 0.55 pounds ECCN 7A994 Manufacturer P/N CI-429-200 Schedule B Code 9803.20.0000 Pack Quantity 1 Comant's frst FAA TSO'd GPS antenna qualifed under new, stringent C190 WAAS requirements. Using the popular ARINC 743 footprint, this WAAS GPS will operate with any DO-301 qualifed WAAS GPS system providing full Gamma 2 & 3 and LPV capabilities. Environmentally tested under RTCA DO-160E standards, the CI 429-200 offers an extensive test pedigree that will meet many GPS system and aircraft requirements. Manufactured with a tough, Skydrol resistant radome and nickel plated aluminum base plate, the CI 429-200 comes standard with a Nitrile 'O' ring for positive sealing to the aircraft skin. Frequency 1575.42 +/- 10.23MHz VSWR 1.5:1 Polarization RHCP Radiation Pattern Omnidirectional Impedance 50 Ohms (Nominal) Gain @ 1575.42 MHz 26.5dB MIN - 32.5dB MAX DC Voltage 4 to 24 VDC DC Current Min/Max 40 mA TYP / 60 mA MAX Noise Figure 2.5dB MAX Stability Unconditional Mechanical / Environmental Weight 7.73 Oz. MAX Finish Glossy White RTCA Env. / TSO DO-160E / C190 Connector TNC (Female)
Price spread · 2 priced listings
Each dot is one listing (hover for supplier & condition); color = condition.
SkyGeek
CostAero
