Part CS3100T2CL2-6OZ
1 listing from 1 supplier (SkyGeek) · $106.28. Prices refresh weekly.
Description

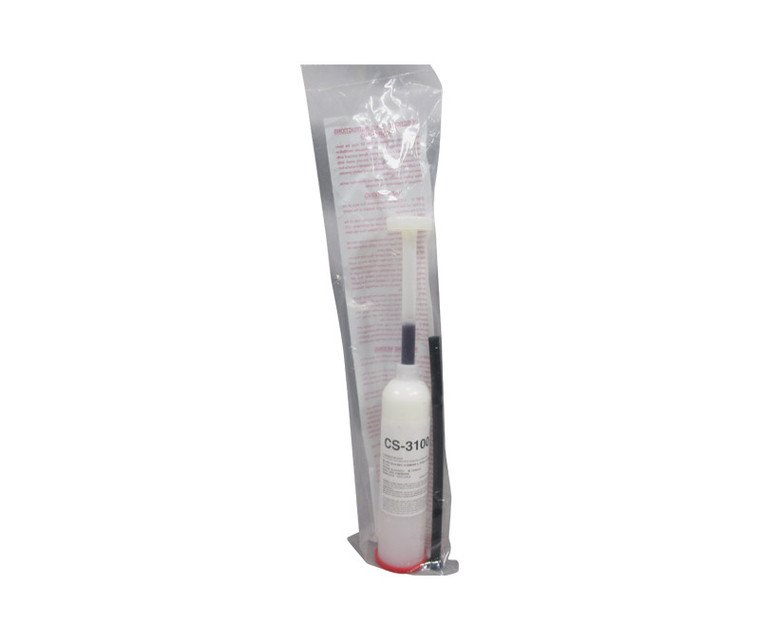

Approvals and Conformities MIL-SPEC# MIL-PRF-8516 Rev. G Amendment 1 Product Attributes Country of Origin United States Size 6 oz (3.5 fl oz) Shipping Weight 0.6 pounds ECCN EAR99 Color Family Brown Manufacturer P/N CS-3100 Type 2 Class 2 Schedule B Code 3506.91.0000 Pack Quantity 1 Ship Dimensions 12 x 2 x 2 inches Size 6 oz (3.5 fl oz) Cartridge Kit Spec MIL-PRF-8516G Amend. 1 Color Brown This two-part polysulfide component cures at room temperature to a firm, flexible rubber. CS 3100 cures by a chemical reaction that is independent of solvent evaporation or exposure to air. Proper mixing of CS 3100 is assured by the contrasting colors of the two parts.CS 3100 is pourable and self-leveling, allowing a complete seal around wires, terminals and irregular configurations providing complete electrical insulation.Meets Mil-PRF-8516G Type I & II, Class 1, 2, & 3 Base Compound Color: White Curing Agent Color: Red Brown Color of Mixed Compound: Tan Mixing Ratio (by weight): 100/10 Non Volatile Content, Min.: 95% Viscosity (Type II): 550 poises Application Time: 1-3 hrs. Hardness Shore A: 40 Adhesion Peel (lbs/in of width): Aluminum: 32 Cadmium: 31 Diallyl Phthalate: 31 Melamine: 29 Temperature Range: -65°F to +225°F Low Temperature Flexibility: -65°F Fungus Resistance: Non-nutrient Vibration Resistance: Excellent Flame Resistance Overload: Does not ignite Flame Application: Does not drip Downloads Safety Data Sheet
