Part CS3204B1-2-BLK-2OZ
1 listing from 1 supplier (SkyGeek) · $38.75. Prices refresh weekly.
Description

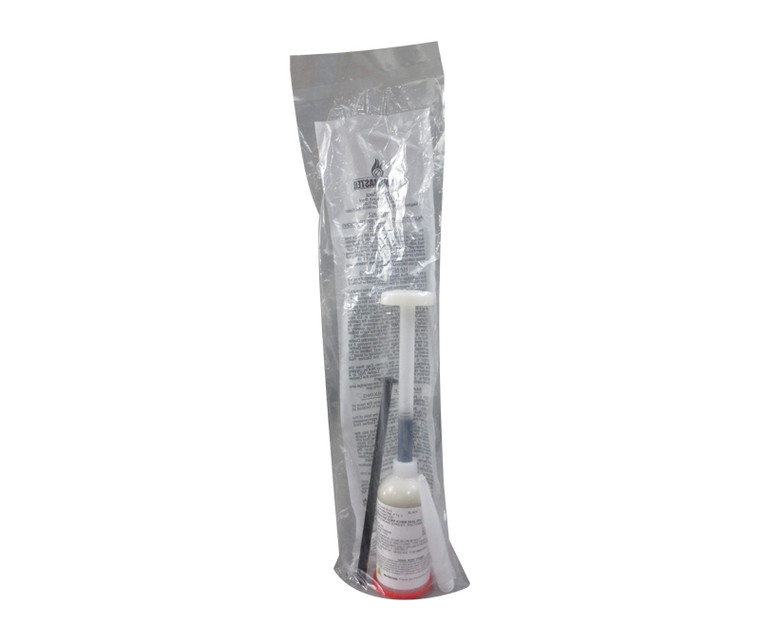

Approvals and Conformities SAE Spec# AMS-S-8802 Rev. F Type 2 (No QPL) Product Attributes Country of Origin United States Size 2.5 oz (2 fl oz) Shipping Weight 0.33 pounds ECCN EAR99 Color Family Black Manufacturer P/N CS-3204 Class B-1/2 Schedule B Code 3506.91.0000 Pack Quantity 1 Ship Dimensions 10 x 3 x 3 inches Size 2.5 oz (2 fl oz) Cartridge Kit Spec AMS-S-8802F Type 2 (No QPL) Class B-1/2 Color Black This fuel resistant sealant is for use on integral fuel tanks and pressurized cabins as well as other areas subject to contact with aircraft fuels, lubricants, oils, water and/or weathering. CS 3204 is a two-part polysulfide base compound which cures at room temperature to a flexible, resilient rubber with excellent adhesion to aluminum, magnesium, titanium, steel, and numerous other materials. CS 3204 is designed to withstand the attack of sulfur compounds that are present in jet fuels. When mixed, CS 3204 Class B is a thixotropic paste that will not flow or sag on vertical or overhead surfaces. Base Compound Color: Off-White Curing Agent Color: Gray Color of Mixed Compound: Gray Mixing Ratio (by weight): 100:10 Mixing Ratio (by volume): 100:8.3 Non Volatile Content: 96% Viscosity Base-Compound (Brookfield RVF Spindle #7 @ 2 RPM): 11,000 poises Viscosity Base-Compound (Brookfield RVF Spindle #67 @ 10 RPM): 1,000 poises Vertical Flow - Slump Inches: Initial - 0.15 Ultimate Hardness Shore A: 50 Fungus Resistance:
