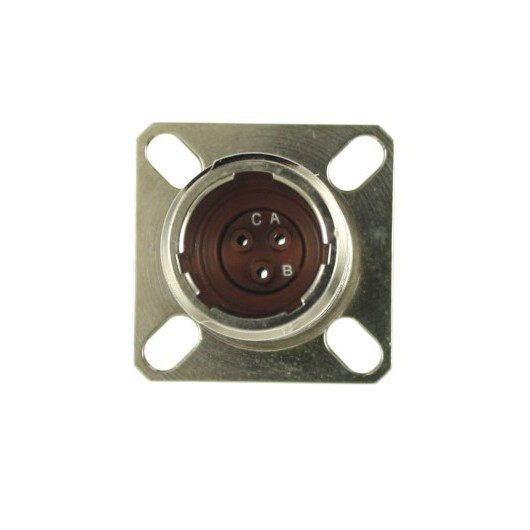

Part D38999-20FA35SN
1 listing from 1 supplier (SkyGeek) · $30.04. Prices refresh weekly.
Description
Approvals and Conformities NSN 5935-01-398-2507 MIL-SPEC# MIL-C-38999/20 Product Attributes Country of Origin United States Shipping Weight 0.15 pounds ECCN EAR99 Manufacturer P/N D38999/20FA35SN Schedule B Code 8538.90.7080 Pack Quantity 1 Series D38999/20 Body Style: Straight Shape, External Coupling Overall Length: 31.5 Millimeters Maximum Overall Height: 23.8 Millimeters Nominal Overall Width: 23.8 Millimeters Nominal Center To Center Distance Between Mounting Facilities Parallel To Height: 18.26 Millimeters Nominal Distance Between Centerlines Of Mounting Facilities Parallel To Body Width: 18.26 Millimeters Nominal Distance From Mounting Shoulder To Front Face: 20.9 Millimeters Maximum Mating End Quantity: 1 Contact Position Arrangement Style: 9-35 Single Mating End Contact Removability: Removable Single Mating End Single Contact Grouping Terminal Location: Back Single Mating End Single Contact Grouping Terminal Type: Crimp Single Mating End Single Contact Grouping Included Contact Quantity: 6 Single Mating End Single Contact Grouping Included Contact Type: Round Socket Single Mating End Single Contact Grouping
