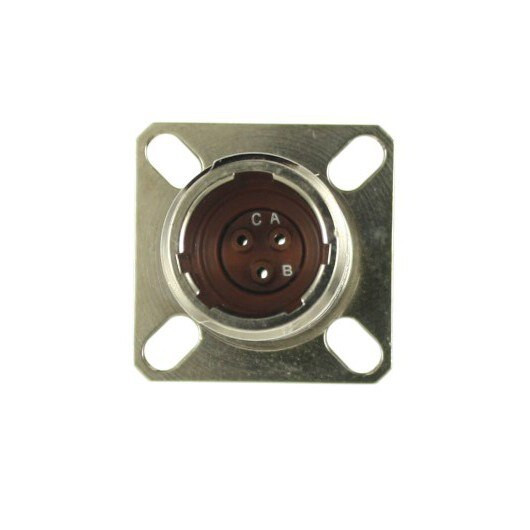

Part D38999-20WA98SN
1 listing from 1 supplier (SkyGeek) · $34.83. Prices refresh weekly.
Description
Approvals and Conformities NSN 5935-01-190-6728 Product Attributes Country of Origin United States Shipping Weight 1 pounds ECCN EAR99 Manufacturer P/N D38999/20WA98SN Schedule B Code 8538.90.7080 Pack Quantity 1 Series D38999/20 Thread Class: 2A Thread Direction: Right-Hand And Right-Hand Iii Body Style: Straight Shape, External Coupling Overall Length: 31.5 Millimeters Maximum Overall Height: 23.8 Millimeters Nominal Overall Width: 23.8 Millimeters Nominal Environmental Protection: Moisture Proof And Salt Water Resistant And Vibration Proof Center To Center Distance Between Mounting Facilities Parallel To Height: 18.2 Millimeters Nominal Distance Between Centerlines Of Mounting Facilities Parallel To Body Width: 18.2 Millimeters Nominal Distance From Mounting Shoulder To Front Face: 20.9 Millimeters Maximum Threaded Device Type: Back Shell And Coupling Facility Mating End Quantity: 1 Contact Position Arrangement Style: 9-98 Single Mating End Contact Removability: Removable Single Mating End Single Contact Grouping Polarization Method: Keyway Or Multiple Keyway Insert Position In Deg: 0.0 Shell Type: Solid Connector Locking Method: Externally Threaded Shell End Item Identification: Mrap Rg-33; 1520-01-106-9519 Thread Quantity Per Inch: 10 Nominal Thread Size: 12.0 Millimeters And 0.625 Inches Thread Pitch In Millimeters: 1.00 Terminal Location: Back Single Mating End Single Contact Grouping Contact Material: Copper Alloy Single Mating End
