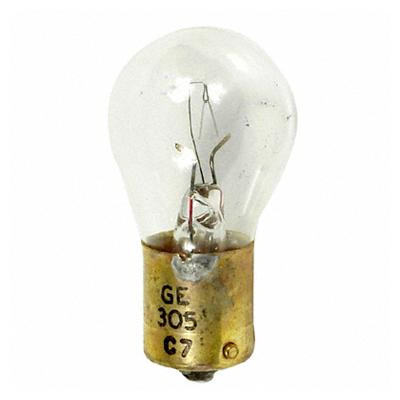

Part GE-305
1 listing from 1 supplier (SkyGeek) · $15.90. Prices refresh weekly.
Description
Approvals and Conformities MIL-SPEC# MS25232-305 Alternate PN#s MS25232-305 Product Attributes Country of Origin United States Shipping Weight 0.01 pounds ECCN 9A991.d Manufacturer P/N 26143 Schedule B Code 9405.40.0000 Pack Quantity 10 Ship Dimensions 2 x 1 x 1 inches General Characteristics Lamp Type Miniature - S Shape Bulb S8 Base Single Contact Bayonet (BA15s) Filament C-2V Wattage 14 Voltage 28 Voltage (MIN) 300 Rated Life 300 hrs Rated Life (Hor) 14 hrs Rated Life (Vert) 300 hrs Bulb Material Lead glass Atmosphere Gas-filled Primary Application Aircraft; Low Voltage Photometric Characteristics Initial Lumens 188 Initial Lumens (Hor) 13.42857 Initial Lumens (Vert) 188 Nominal Initial Lumens per Watt 13 Center Beam Candlepower (CBCP) 188 Mean Spherical Candlepower (MSCP) 15 Dimensions Maximum Overall Length (MOL) 2.0000 in (50.8 mm) Bulb Diameter (DIA) 1.000 in (25.4 mm) Light Center Length (LCL) 1.120 in (28.4 mm) Product Information Product Code 26143 Description 305 ANSI Code 305 Standard Package Unit Standard Package GTIN 00043168261432 Standard Package Quantity 1
