Part H782
1 listing from 1 supplier (SkyGeek) · $855.27. Prices refresh weekly.
Description

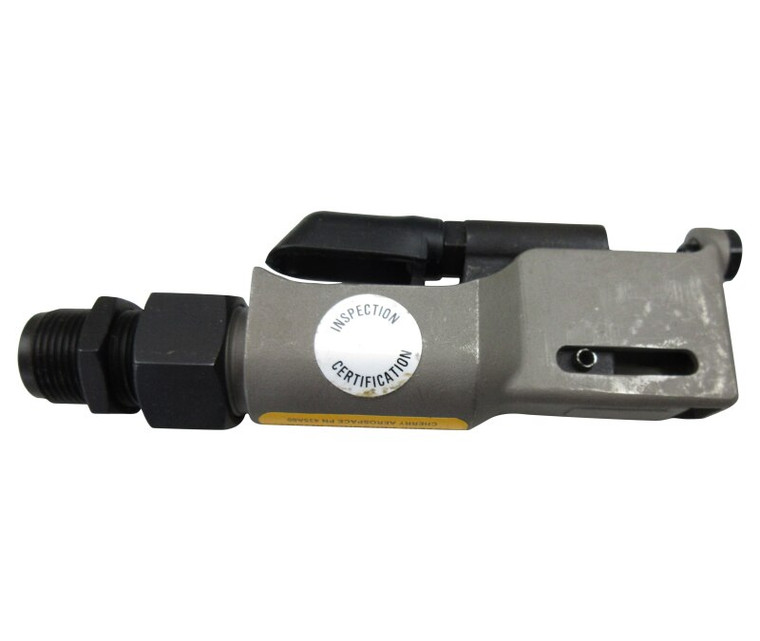

Approvals and Conformities Product Attributes Country of Origin United States Shipping Weight 1.5 pounds ECCN EAR99 Manufacturer P/N H782 Schedule B Code 8207.90.7570 Pack Quantity 1 Ship Dimensions 7 x 4 x 2 inches The CherryMax H782 two-jaw offset pulling head is recommended for use with the following rivetersG747 (2200 lbss force; 7/16" stroke)G704B (3100 lbs. force; 1/2"stroke)G746A (1850 lbss force; 7/8" stroke)G800 (4200 lbs. force; .78" stroke; hand powered)Other riveters may be used with proper adapters.Stroke: Up to 3/4"Installs the following products with nosepiece 7820456 provided:CherryMax -4, -5 & -6CherryMax? AB -4, -5 & -6 (except -6 aluminum)Blindbolt "S" type -04 & -05MBC Lock Creator -4, -5 & -6** Additional nosepieces are available for the installation of CherryMax? "AB" (-6 aluminum), CherryLock? "A" code (-3, -4, -5 & -6), Blindbolt "U" Type (-05), Standard MBC (-4, -5 & -6) and 3/32" SPR and Pull Through Nut Plate Rivets (-3).
